Remove/check/install front axle brake pads - AR42.10-P-1610LWC

MODEL 205 with CODE B07 (Ceramic brake system) without CODE B06 (grey-painted brake callipers) without CODE U70 (red-painted brake callipers) 6-piston fixed-caliper brake

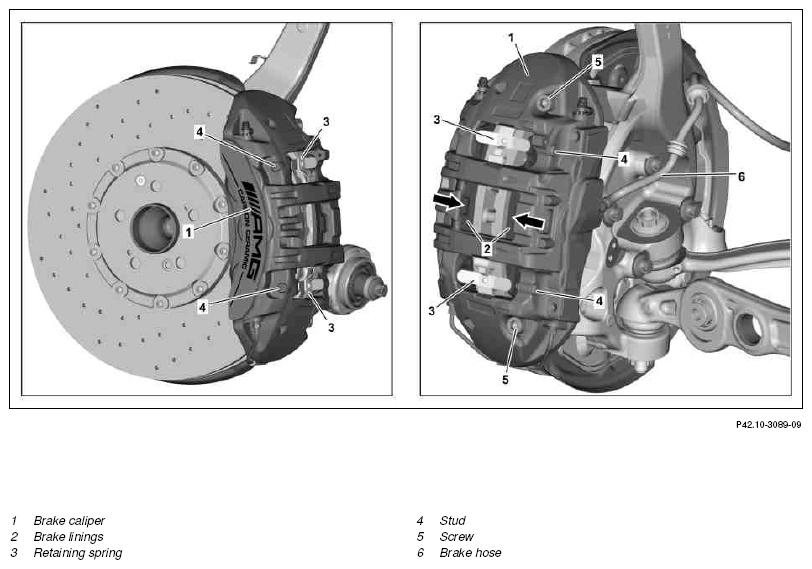

Fig 1: Front Axle Brake Pads Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on evaluating brake disks		AH42.10-P-9406-07RQ
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove/install
1	Remove cover above brake fluid expansion reservoir
2	Clean area around cap on expansion reservoir for brake fluid	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston is pushed back.
4	Remove front wheels		AR40.10-P-1101A
5	Disconnect right front brake wear sensor from electrical connector
6	Press back brake piston using resetting device	Position the pusher tool at the elevations (arrows) of the brake linings (2).
		Resetting device If brake pistons are sluggish: ↓ Replace brake caliper (1).	Figure
			AR42.10-P-0070LWC
7	Remove screw/bolts (5)	Replace screw/bolts (5).
		MODEL 205.086/087/286/287/386/387/486/487 with CODE B07 (Ceramic brake system) without CODE B06 (grey-painted brake callipers) without CODE U70 (red-painted brake callipers) 6-piston fixed-caliper brake	*BA42.10-P-1001-10W
8	Remove brake caliper (1) from wheel carrier and secure free of tension to vehicle with lines still connected	Do not subject the brake hose (6) and electrical line to tension and do not kink them. The brake hose (6) and the electrical line can otherwise be damaged.
9	Press brake linings (2) off screw bolts (4) against force of retaining springs (3) and remove from brake caliper (1)	Do not loosen or remove the screw bolts (4). Do not apply brake paste or lubricants to the brake linings (2) and brake calipers (1). Only complete sets of brake linings (2) approved by Mercedes-Benz may be installed.
	Check
10	Check retaining springs (3) for damage and that they are in good condition	If there are problems: ↓ Replace retaining springs (3).
11	Check brake linings (2) for wear and that they are in good condition
			AP42.10-P-4252CAA
		In case of damage or excessive wear: ↓ Replace brake linings (2). Replace the brake linings (2) as a complete set only.
12	Check brake caliper (1) and dust boots of brake piston for leaktightness and damage	If there are problems: ↓ Replace brake caliper (1).
			AR42.10-P-0070LWC
	Clean
13	Clean contact surfaces of brake linings (2) on brake caliper (1) and on brake pistons	Do not use sharp-edged or pointed objects. The brake caliper (1) or the dust boots of the brake pistons can otherwise be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
14	Pull right front brake wear sensor out of pad backing plate of brake lining (2)	When replacing the brake linings (2) or replacing the right front brake wear sensor.
15	Install in the reverse order
16	Operate brake pedal several times until brake linings (2) rest against brake disks	Firm resistance should be noticeable at the brake pedal.
	Check
17	Check/correct brake fluid level in expansion reservoir
			AP42.10-P-4210CAA
18	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 2: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA
