Checking check valve - AR43.10-P-0023LW
MODEL 205
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | ||
| 2 | Remove left and right wiper arms | AR82.30-P-6100LW | |

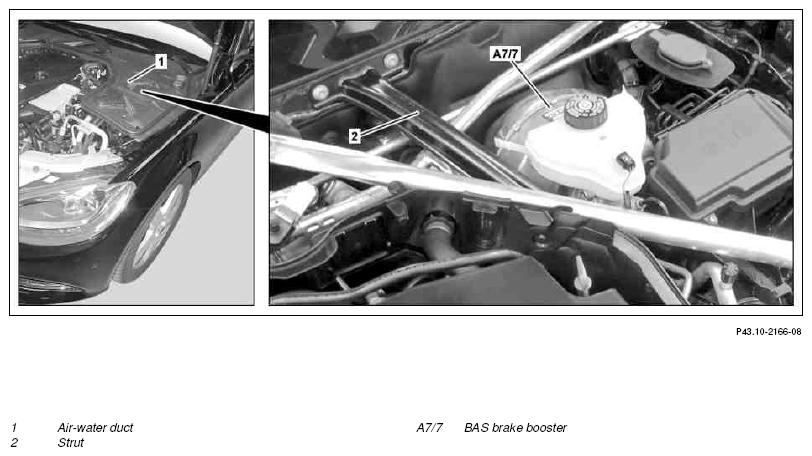

| 3 | Remove air-water duct (1) below left wiper arm | ||
| 4 | Remove strut (2) | *BA62.30-P-1003-01H | |
| *BA62.30-P-1004-01H | |||
| Check | |||
| 5 | Eliminate vacuum in BAS brake booster (A7/7) | ||

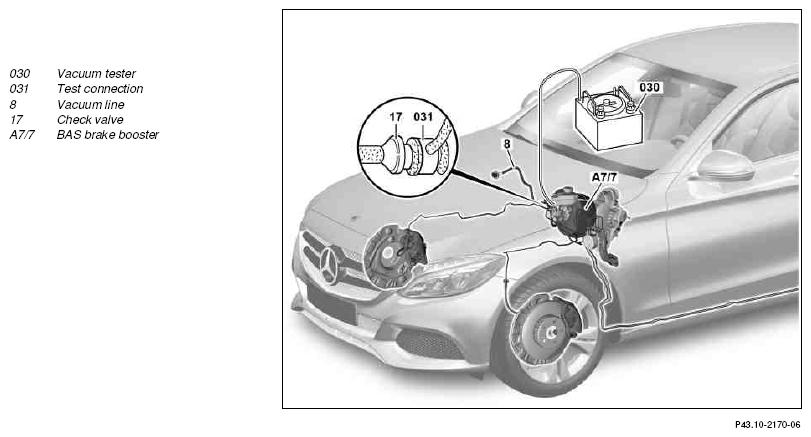

| 6 | Connect vacuum tester (030) with test connection (031) to BAS brake booster (A7/7) | AR43.10-P-0024-01V | |
| Fig 3 | |||
| Fig 4 | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Start the engine and produce a vacuum of 0.75 to 0.8 bar by pressing and suddenly releasing the accelerator pedal | ||
| 8 | Check the check valve (17) | In the event of a vacuum loss >0.2 bar: ↓ Replace vacuum line (8) with check valve (17). |
|
| AR43.10-P-0355LW | |||
| If necessary: ↓ Check BAS brake booster (A7/7). |
|||
| AR43.10-P-0325LW | |||
| 9 | Disconnect vacuum tester (030) with test connection (031) from BAS brake booster (A7/7) | AR43.10-P-0024-01V | |
| 10 | Install in the reverse order |
CROSSMEMBER AND FRONT REINFORCEMENT
| Number | Designation | MODEL 205 | ||
|---|---|---|---|---|
| BA62.30-P-1003-01H | Screw/bolt, strut to crossmember | M8 | Nm | 20 |
CROSSMEMBER AND FRONT REINFORCEMENT
| Number | Designation | MODEL 205 | ||
|---|---|---|---|---|
| BA62.30-P-1004-01H | Screw/bolt, strut to soundproofing | M8 | Nm | 20 |
