Removing and installing soft top compartment cover opened limit switch - AR77.39-P-3710LWR
MODEL 205.4
| Remove | |||

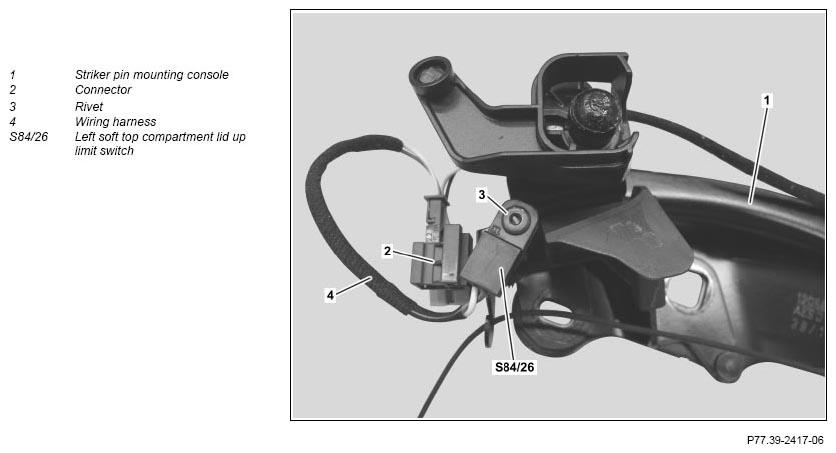

| 1 | Remove left striker pin mounting console (1) for soft top compartment lid | AR77.30-P-3978LWR | |
| 2 | Unclip connector (2) from striker pin mounting console (1) | ||
| 3 | Knock rivet (3) off of striker pin mounting console (1) and remove rivet residues | ||
| 4 | Cut wiring harness (4) at suitable point and remove left upper soft compartment lid limit switch (S84/26) | ||
| Install | |||
| 5 | Shorten electrical lines of new upper left soft top compartment limit switch (S84/26) to corresponding length | If necessary. | |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 6 | Solder electrical lines of left upper soft top compartment limit switch (S84/26) to wiring harness (4) and insulate | ||
| Notes on soldering | AH00.19-P-1000-10A | ||
| Notes on soft soldering | AH00.19-P-1000-07A | ||
| 000 588 00 84 00 Heat gun | WS54.00-P-0049B | ||
| AR00.19-P-0100-09A | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 7 | Protect repair point with fabric tape after repairing line | AR00.19-P-0100-08A | |
| 8 | Rivet left upper soft top compartment limit switch (S84/26) to striker pin mounting console (1) | ||
| 9 | Remove left striker pin mounting console (1) for soft top compartment lid | AR77.30-P-3978LWR |
