Remove/install striker pin mounting bracket for soft top compartment lid - AR77.30-P-3978LWR

MODEL 205.4

Shown on left side of vehicle

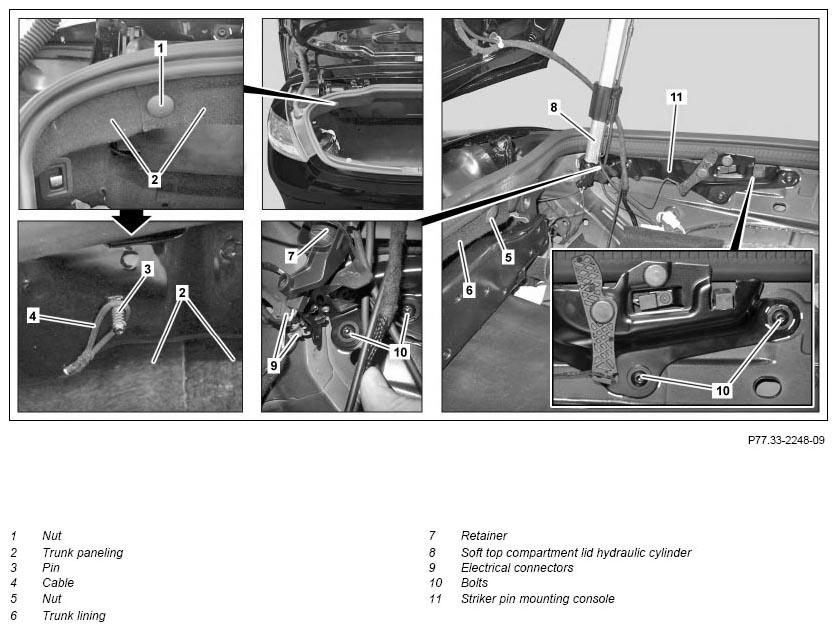

Fig 1: Striker Pin Mounting Bracket Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects.	AS91.00-Z-0003-01LCA
	Remove/install
1	Open trunk lid
2	Unscrew nut (1)
3	Loosen trunk paneling (2) from bolt (3) and unhook cable (4)
4	Close trunk lid
5	Move soft top to repair position R2	Completely close soft top.	AR77.30-P-1030LWR
6	Cover rear fender
7	Unscrew nut (5) and loosen trunk paneling (6) in soft top compartment
8	Lift retainer (7) with suitable screwdriver and unclip soft top compartment hydraulic cylinder (8) at bottom
9	Disconnect electrical connectors (9)	Only one electrical connector is present on the right side of the vehicle.
10	Mark installation position of striker pin mounting console (11) to body
11	Remove screws (10)	Align striker pin mounting console (11) according to markings. Bolt, mounting support for striker pin to body	*BA77.33-P-1005-03A
12	Remove striker pin mounting console (11) together with cable (4)	Observe routing for cable (4).
13	Install in the reverse order

SOFT TOP COMPARTMENT LID

Number	Designation		Model 205.4
BA77.33-P-1005-03A	Bolt, mounting support for striker pin to body	Nm	10
