Remove/install soft top compartment lid lock - AR77.30-P-3975LWR

MODEL 205.4

Shown on left side of vehicle

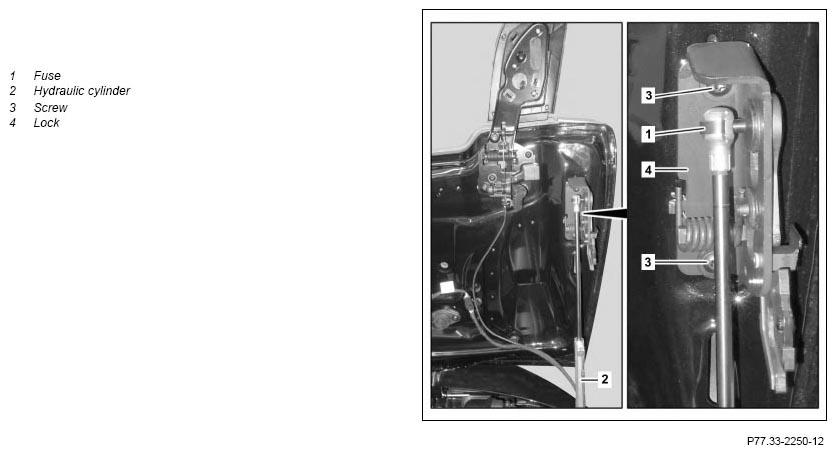

Fig 1: Soft Top Compartment Lid Lock Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Move soft top to repair position R4	Completely close soft top.	AR77.30-P-1030LWR
2	Lift retainer (1) with suitable screwdriver and unclip hydraulic cylinder (2) at bottom and lay down
3	Unscrew bolts (3) and remove lock (4)	Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid	*BA77.33-P-1006-03A
4	Install in the reverse order

SOFT TOP COMPARTMENT LID

Number	Designation		Model 205.4
BA77.33-P-1006-03A	Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid	Nm	10
