Remove/install soft top compartment lid 'Locked' limit switch - AR77.39-P-3711LWR
MODEL 205.4
Shown on left side of vehicle

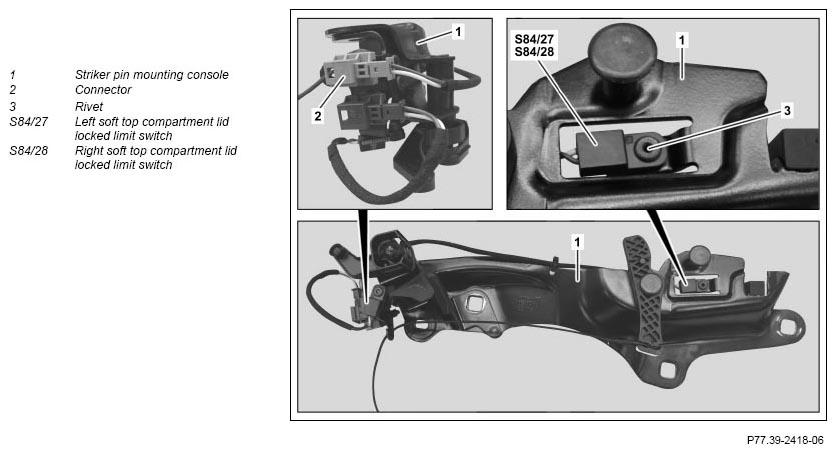

Fig 1: Soft Top Compartment Lid 'Locked' Limit Switch Remove/Install Components - Shown On Left Side Of Vehicle
| Remove/install | |||
| 1 | Remove left or right striker pin mounting console (1) for soft top compartment lid | AR77.30-P-3978LWR | |
| 2 | Unclip connector (2) from striker pin mounting console (1) and expose wiring harness | ||
| 3 | Knock rivet (3) off of striker pin mounting console (1) and remove rivet residues | ||
| 4 | Remove wiring harness with left soft top compartment locked limit switch (S84/27) or right soft top compartment locked limit switch (S84/28) | ||
| 5 | Install in the reverse order |
