Remove/install limit switch for open soft top - AR77.39-P-3702LWR
MODEL 205.4
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Remove | |||
| 1 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 2 | Cover rear left fender | ||
| 3 | Knock off rivet (1) and remove rivet residues | ||
| 4 | Cut wiring harness (2) at suitable point | Cut wiring harness (2) so that the repair point is not stressed mechanically when opening and closing the soft top. Otherwise the repair point can be damaged. |
|
| 5 | Remove soft top open limit switch (S84/3) | ||
| Install | |||
| 6 | Short electrical lines of new soft top open limit switch (S84/3) to corresponding length | If necessary. | |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 7 | Solder electrical lines of new soft top open limit switch (S84/3) to wiring harness (2) and insulate | ||
| Notes on soldering | AH00.19-P-1000-10A | ||
| Notes on soft soldering | AH00.19-P-1000-07A | ||
| 000 588 00 84 00 Heat gun | WS54.00-P-0049B | ||
| AR00.19-P-0100-09A | |||

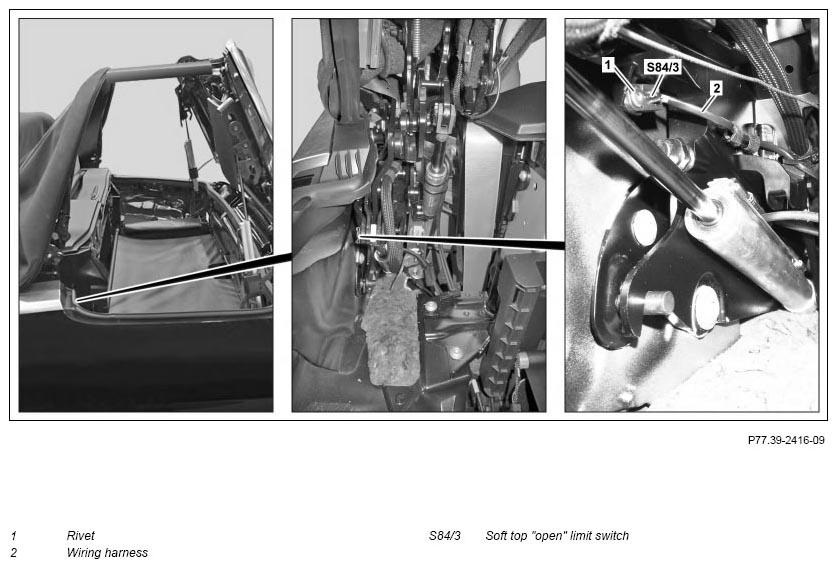

| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 8 | Protect repair point with fabric tape after repairing line | AR00.19-P-0100-08A | |
| 9 | Rivet soft top open limit switch (S84/3) | ||
| 10 | Remove retainers for repair position on soft top mechanism | ||
| 11 | Remove cover from rear left fender | ||
| 12 | Completely close soft top |
