Remove/install draft stop - AR77.25-P-2000LWR
MODEL 205.4
with CODE 288 (Draft stop for convertible)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||
| 1 | Remove seat cushion in rear | Model 205.4 with code 288 (Draft stop for convertible) except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) |
AR91.12-P-1020LW |
| 2 | Remove both side seat bolsters in rear | AR91.12-P-1711LWR | |
| 3 | Remove shoulder cushion in rear | AR91.12-P-1712LWR | |

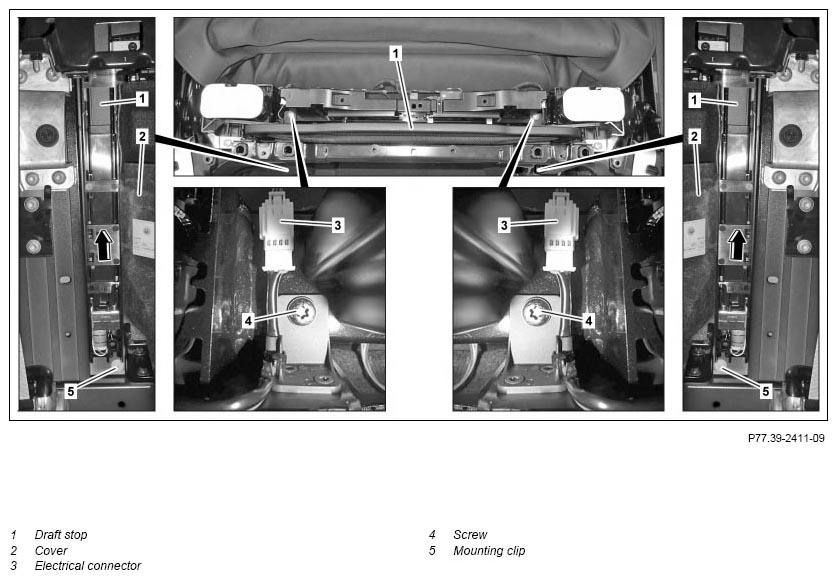

| 4 | Loosen paneling (2) in area of draft stop (1) | ||
| 5 | Disconnect electrical connectors (3) and unclip plug sockets | ||
| 6 | Remove screws (4) | ||
| 7 | Unclip draft stop (1) at bottom and remove upward (arrows) | ||
| 8 | Install in the reverse order |
