Remove/install rear seat cushion - AR91.12-P-1020LW

Model 205 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany)

Model 253

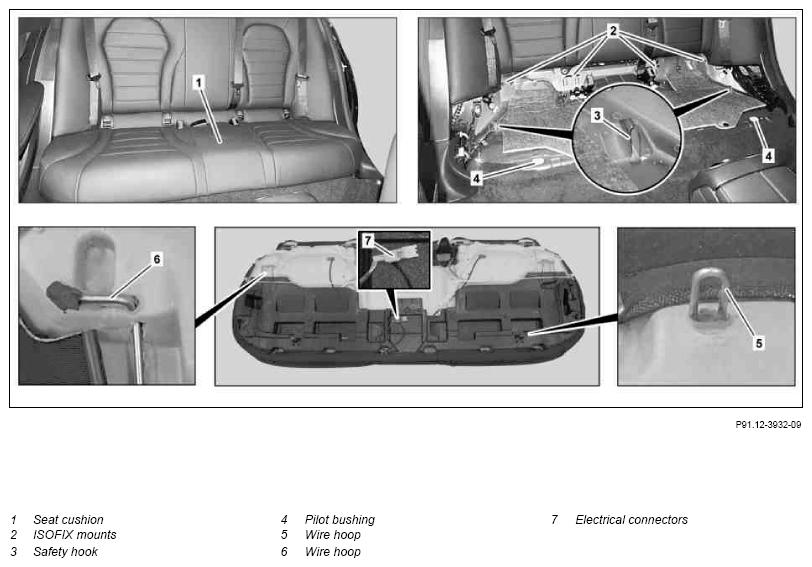

Fig 1: Rear Seat Cushion Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move driver seat and front passenger seat forwards
2	Remove seat cushion (1) at left and right upwards from pilot bushings (4)	Ensure that wire hoop (5) is seated correctly in pilot bushings (4).
3	Disconnect electrical connectors (7) and unclip	Model 205.1 with code 872 (Heated rear seats) except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 253 with code 872 (Heated rear seats)
4	Press seat cushion (1) at left and right toward rear and unhook upwards from safety hooks (3)	Ensure that wire hoop (6) is seated correctly in safety hooks (3).
5	Remove seat cushion (1) from ISOFIX mounts (2) and remove from vehicle	Carefully remove seat cushion (1) from vehicle. Otherwise components of the vehicle may be damaged. Ensure correct installation position of belt buckles.
6	Install in the reverse order
