Open and close soft top with emergency actuation - AR77.30-P-0999LWR

MODEL 205.4

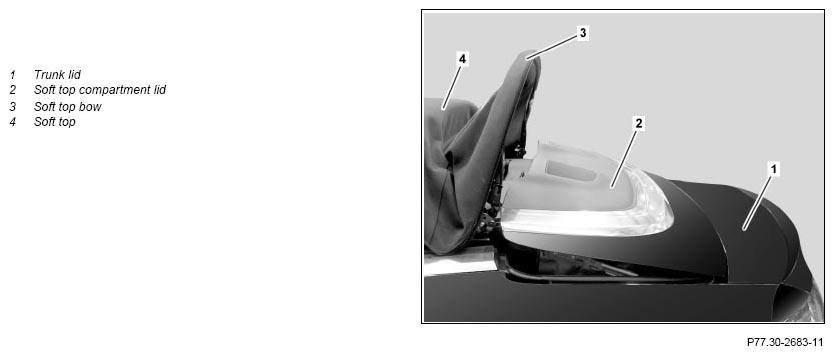

Fig 1: Trunk Lid, Soft Top Compartment Lid And Soft Top

Courtesy of MERCEDES-BENZ USA

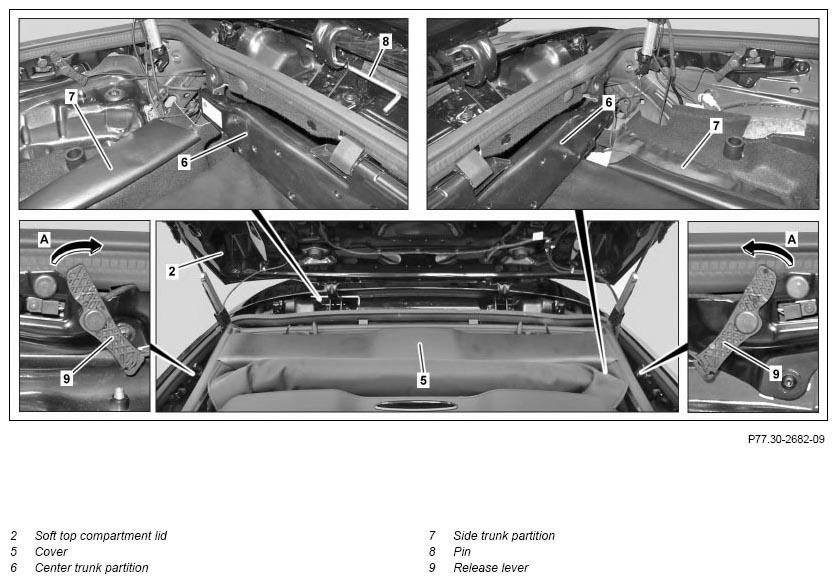

Fig 2: Center Trunk Partition And Release Lever

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects.	AS91.00-Z-0003-01LCA
	Close soft top (4) with emergency actuation
1	Open trunk lid (1)
2	Unlock backrest in rear
3	Unlock soft top compartment lid (2) with emergency actuation		AR77.30-P-0999-03LWR
4	Close trunk lid (1)	The trunk lid (1) can only be opened via diagnostic system after closing, because the soft top compartment lid (2) can no longer be closed to the end position after the emergency actuation. It is necessary to inform the customer about this before closing the trunk lid (1).
5	Open soft top compartment lid (2) and secure against automatic closing with suitable bolts (8)
6	Move back left and right release lever (9) in direction of arrow (A)
7	Unclip paneling (5) and remove
8	Manually close soft top (4)	Helper required.
9	Fold center trunk partition (6) upward in soft top compartment
10	Loosen side trunk partition (7) on left and right at bottom of velcro fastener
11	Lift stop top bow (3) and remove bolt (8) from soft top compartment lid (2)	Helper required.
12	First lay down soft top compartment lid (2), then soft top bow (3)	Helper required.
13	Simultaneously push soft top compartment lid (2) on left and right down until it is completely closed	With hydraulic residual pressure in hydraulic cylinders of soft top compartment lid (2). Helper required.
14	Lock soft top(4) with emergency actuation	Two helpers are required.	AR77.30-P-0999-01LWR
15	Lock backrests in rear	If necessary. The rear backrests can still be unlocked via the diagnostic system after locking, because the trunk lid (1) can no longer be opened via the switch after the emergency actuation.
	Open soft top (4) with emergency actuation
16	Open trunk lid (1)	If the soft top (4) was not closed via the emergency actuation previously.
17	Unclip paneling (5) and remove	If the soft top (4) was not closed via the emergency actuation previously.
18	Unlock soft top (4) with emergency actuation		AR77.30-P-0999-02LWR
19	Unlock soft top compartment lid (2) with emergency actuation	If the soft top (4) was not closed via the emergency actuation previously.	AR77.30-P-0999-03LWR
20	Close trunk lid (1)	If the soft top (4) was not closed via the emergency actuation previously. The trunk lid (1) can only be opened via diagnostic system after closing, because the soft top compartment lid (2) can no longer be closed to the end position after the emergency actuation.
21	Lift soft top bow (3), open soft top compartment lid (2) and secure against automatic closing with suitable bolt (8)	Helper required.
22	Move back left and right release lever (9) in direction of arrow (A)	If the soft top (4) was not closed via the emergency actuation previously.
23	Fasten side trunk partition (7) on left and right at bottom of velcro fastener	If the soft top (4) was not closed via the emergency actuation previously.
24	Fold center trunk partition (6) downward in soft top compartment
25	Manually open soft top (4)	Helper required.
26	Place paneling (5) and clip in
27	Remove bolt (8) on soft top compartment lid (2) and lay soft top compartment lid (2) down on soft top (4)
