Adjust header bow - AR77.33-P-1023LWR

MODEL 205.4

Shown on left side of vehicle

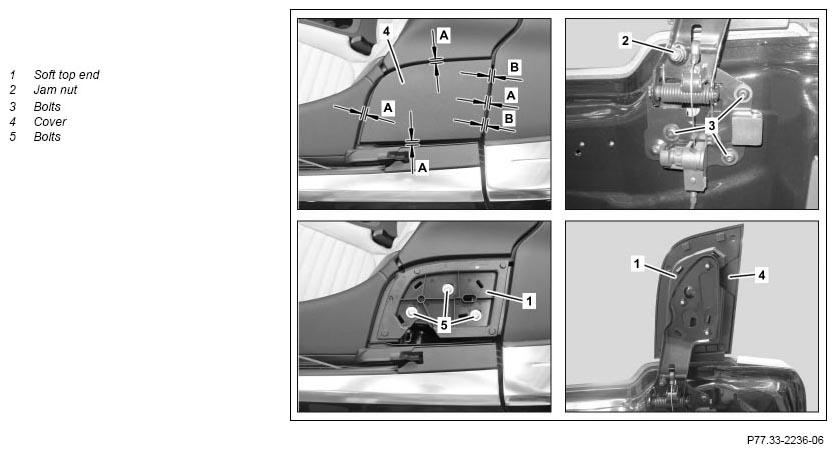

Fig 1: Adjusting Header Bow - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Check
1	Completely open soft top
2	Check gap dimensions (A) and transitions of cover (4)	The gap dimensions (A) must be uniform and the transitions level.
	Adjust
3	Move soft top to repair position R4		AR77.30-P-1030LWR
4	Cover both rear fenders
5	Loosen jam nut (2), adjust stop with suitable screwdriver (height of header bow (1)) and tighten jam nut (2) again	Adjust header bow (1) so that transitions are level.
6	Loosen bolts (3), adjust header bow (1) and tighten bolts (3) again	Adjust header bow (1) so that gap dimension (B) is uniform. Screw/bolt, header bow hinge to soft top compartment lid	*BA77.33-P-1003-03A
7	Completely open soft top and check adjustment
8	Move soft top to repair position R4	Readjustment required.	AR77.30-P-1030LWR
9	Unclip cover (4) from header bow (1)	Readjustment required.
10	Loosen bolts (5), adjust header bow (1) and tighten bolts (5) again	Readjustment required. Adjust header bow (1) so that the gap dimensions (A) are uniform. Screw/bolt, header bow to hinge	*BA77.33-P-1004-03A
11	Clip cover (4) into header bow (1)	Readjustment required.
12	Completely open soft top and check adjustment	If complaint present ↓ Repeat operation steps 3 to 10
