Retrofit draft stop - AN77.25-P-2199LWR

MODEL 205.4

except code 288 (Draft stop for convertible)

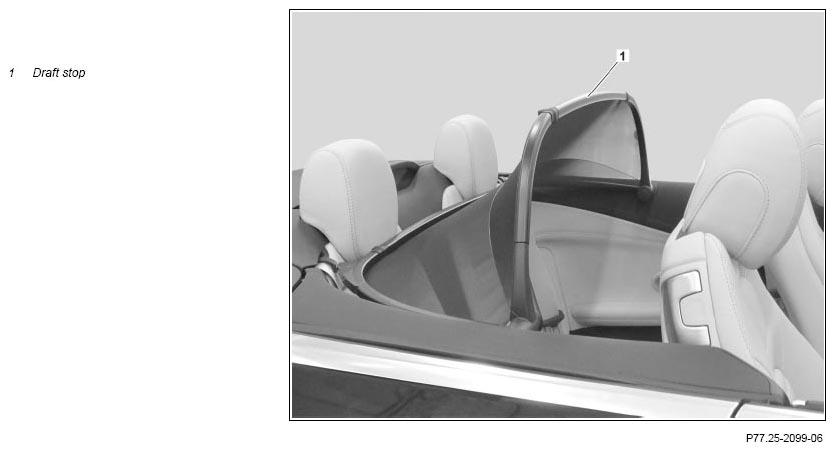

Fig 1: Draft Stop

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

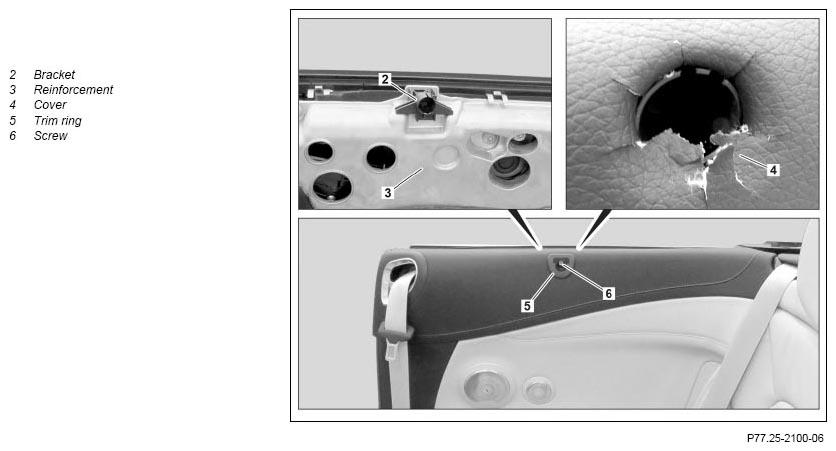

Fig 2: Bracket, Reinforcement, Cover, Trim Ring And Screw - Shown On Right Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove upper left and right paneling in rear
			AR68.30-P-4783LWR
	Install
2	Modify upper paneling in rear for retrofitting draft stop (1)		AN77.25-P-2199-01LWR
3	Clip bracket (2) into reinforcement (3)	Shown on right side of vehicle. Installation on left side of vehicle is analogous.
4	Install upper left and right paneling in rear
		It is necessary to fold over extending cover (4) toward inside. Remove trim rings (5) and bolts (6) from draft stop parts kit.	AR68.30-P-4783LWR
5	Open draft stop (1) and install
	Update Vehicle Documentation (VeDoc)
6	Enter special equipment in online vehicle data card	Code 285  (draft stop)
7	Attach note "Draft stop retrofitted according to AN77.25-P-2199LWR" under field organization texts to KG 68
