Removing and installing soft top paneling - AR68.30-P-4320LWR

MODEL 205.4

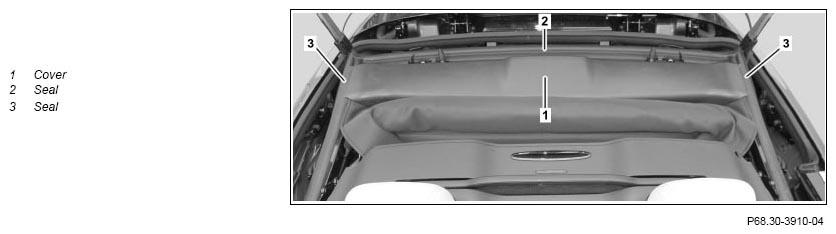

Fig 1: Soft Top Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects.	AS91.00-Z-0003-01LCA
	Remove/install
1	Move soft top to repair position R4	Completely close soft top.	AR77.30-P-1030LWR
2	Cover both rear fenders
3	Unclip paneling (1) and remove	Ensure that front seal (2) and outer seals (3) are seated properly on paneling (1).
4	Install in the reverse order
