Remove/install inside rearview mirror - AR68.40-P-0001LW
MODEL 205 (except 205.4)
MODEL 253
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit | AR82.20-P-1000LF | |

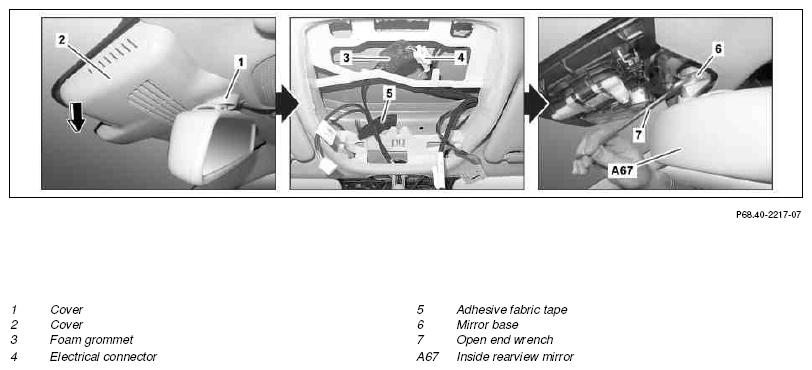

| 2 | Unclip cover (1) and remove | ||
| 3 | Unclip and remove cover (2) in direction of arrow | ||
| 4 | Push back foam rubber grommet (3) | Completely install foam rubber grommet (3) over electrical connector (4). Otherwise noises can occur. |
|
| 5 | Disconnect electrical connection (4) | ||
| 6 | Detach duct tape (5) | ||
| 7 | Turn inside rearview mirror (A676) on mirror base (7) to right with open end wrench and remove from mirror holder | ||
| 8 | Adjust reading lamp on inside mirror (A67) to steering variant | When replacing inside rearview mirror (A67). | |
| AR68.40-P-0001-01A | |||
| 9 | Install in the reverse order |
