Remove/install cover on center console - AR68.20-P-2350LW
MODEL 205 with TRANSMISSION 722, 724, 725
MODEL 253 with TRANSMISSION 724, 725

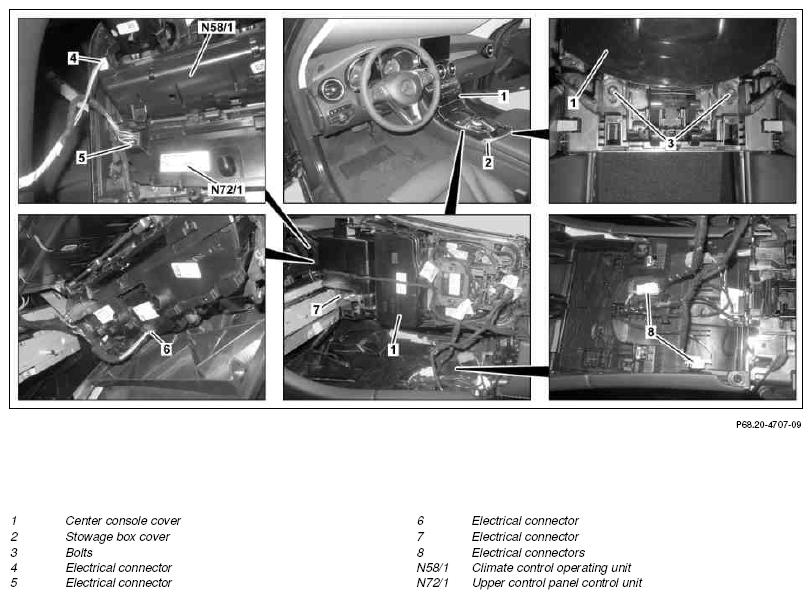

Shown on model 205
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove stowage box cover (2) | AR68.20-P-1020LW | |
| 3 | Unscrew bolts (3) from center console cover (1) | ||
| 4 | Lift center console cover (1) at rear and move out of instrument panel at top front until electrical connectors (4 and 5) are accessible | Cover center console and instrument panel with rag. Otherwise the center console and instrument panel can be damaged. |
|
| 5 | Disconnect electrical connector (4) from climate control operating unit (N58/1) | ||
| 6 | Disconnect electrical connector (5) at upper control panel control unit (N72/1) | ||
| 7 | Disconnect electrical connectors (6, 7 and 8) | ||
| 8 | Remove cover on center console (1) | ||
| 9 | Install in the reverse order |
