Remove/install cover on stowage box - AR68.20-P-1020LW

MODEL 205, 253

Shown on model 253 with code 427 (7G-TRONIC)

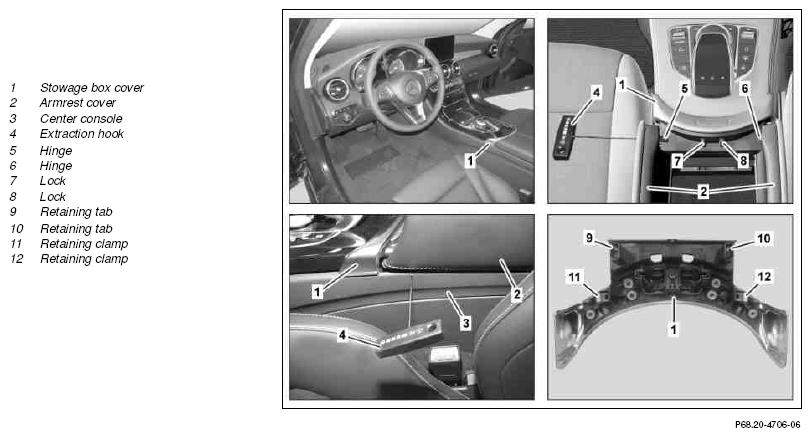

Fig 1: Stowage Box Cover Remove/Install Components - Shown On Model 253

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove
1	Open armrest cover (2)
2	Carefully pull stowage box cover (1) upward at front until retaining clips (11, 12) arrest noticeably
3	Install extraction hook (4) behind hinge (5) at side between armrest cover (2) and center console (3) and release retaining tab (9) by pressing	Extraction hook	Fig 2
4	Install extraction hook (4) behind hinge (6) at side between armrest cover (2) and center console (3) and release retaining tab (10) by pressing	Extraction hook	Fig 2
5	Pull stowage box cover (1) upward, press in locks (7, 8) and remove stowage box cover (1)
	Install
6	Position stowage box cover (1) in installation position and clip in	Ensure that retaining tabs (9, 10) and retaining clips (11, 12) are seated correctly.
7	Close armrest cover (2)

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
