Remove/install backup camera - AR54.65-P-0030LWR

MODEL 205.4

with CODE 218 (Rear view camera)

MODEL 205.4

with CODE 501 (360° camera)

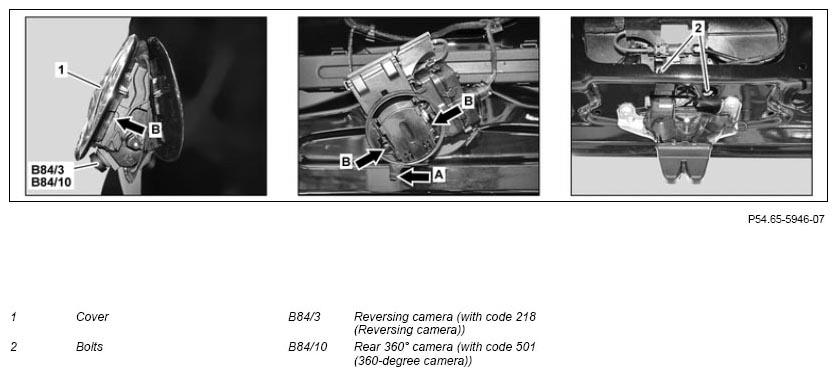

Fig 1: Backup Camera Remove/Install Component (1 Of 3)

Courtesy of MERCEDES-BENZ USA

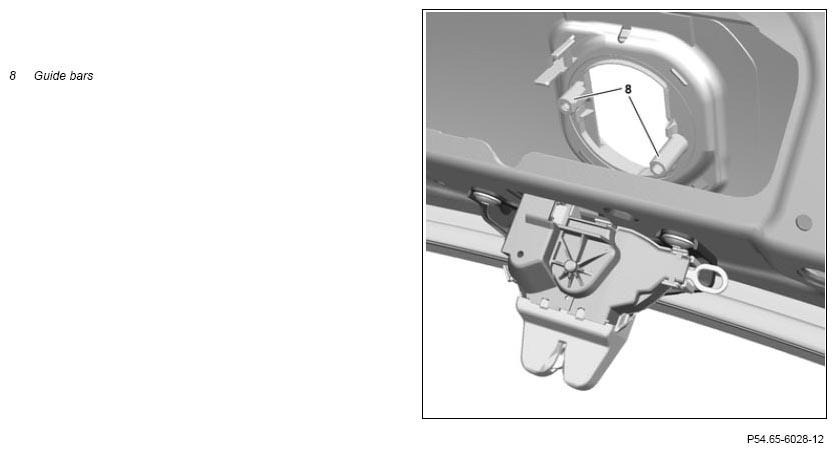

Fig 2: Backup Camera Remove/Install Component (2 Of 3)

Courtesy of MERCEDES-BENZ USA

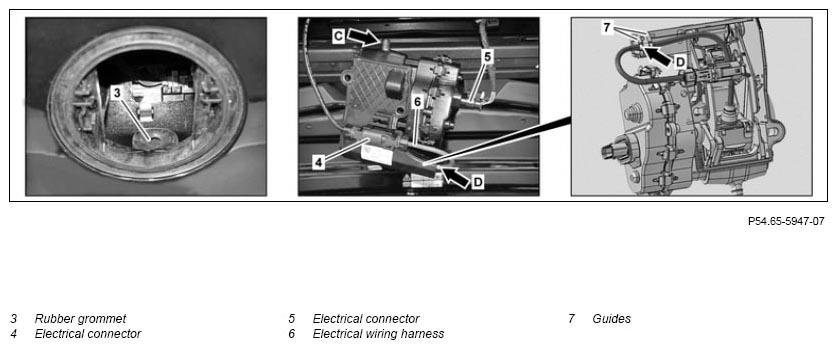

Fig 3: Backup Camera Remove/Install Component (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of reversing camera (B84/3) or rear 360° camera (B84/10) using diagnostic system	If the reversing camera (B84/3) or the rear 360° camera (B84/10) is to be replaced.
			AD00.00-P-2000-04B
2	Switch on ignition, select item "Open camera cover" in "Reversing camera" or "360° camera" menu and confirm	The cover (1) opens. The cover (1) closes when the ignition is switched off or if the vehicle is driven forward.
3	Release both catches (arrows B) and pull off cover (1)
4	Switch off ignition	In the "Reversing camera" or "360° camera" menu, select the item "Open camera cover" and confirm.
5	Remove paneling on trunk lid		AR68.30-P-8151LWR
6	Unscrew bolts (2)
7	Push back catch hook (arrow A), remove reversing camera (B84/3) or rear 360° camera (B84/10) and disconnect electrical connections (4, 5)	While removing or inserting the reversing camera (B84/3) or rear-end 360° camera (B84/10), no force must be applied to the sides of guide bars (8). Otherwise the guide bars (8) can break. Make sure that the drain fitting (arrow C) is seated correctly in the rubber grommet (3). The electrical wiring harness (6) must NOT be pulled out any further. The marking (arrow D) must be in the outer guide (7).
8	Install in the reverse order
9	Calibrate rear 360° camera (B84/10) using diagnostic system	Model 205.4 with code 501 (360° camera)
			AD00.00-P-2000-04B
