Remove/install trunk lid cover - AR68.30-P-8151LWR

MODEL 205.4

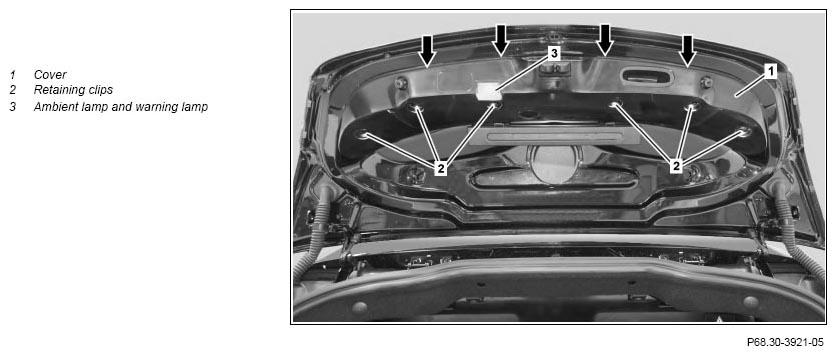

Fig 1: Trunk Lid Cover Remove/Install Components

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Remove retaining clips (2)	Clip remover	Figure
2	Unclip paneling (1) from trunk lid (arrows) and disconnect electrical connector from ambient lamp and warning lamp (3)
3	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
