Remove/install backup camera - AR54.65-P-0030LC
MODEL 205.3 with CODE 218 (Rear view camera)
MODEL 205.3 with CODE 501 (360° camera)
MODEL 217.3
Shown on model 217.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove trunk lid cover | Model 217.3 | AR88.50-P-5000LC |
| Model 205.3 with code 218 (Rear view camera) Model 205.3 with code 501 (360° camera) |
AR68.30-P-8151CLW | ||

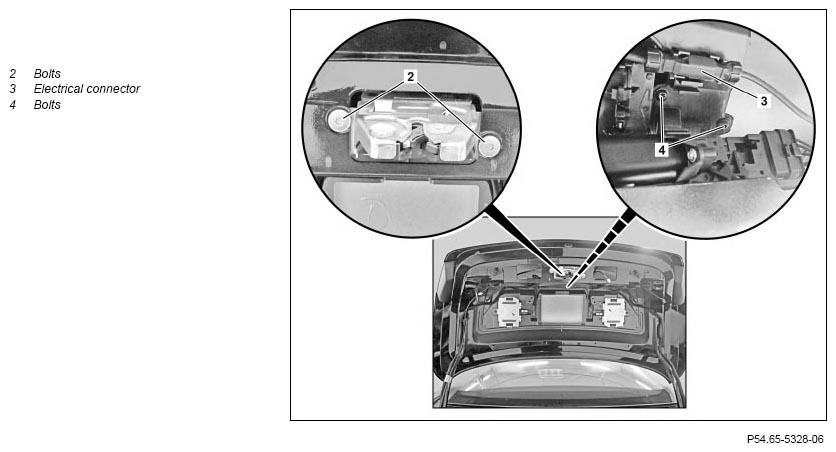

| 3 | Remove bolts (2) and place trunk lid lock to one side | ||
| 4 | Expose electrical connector (3) and disconnect | ||
| 5 | Remove screws (4) | ||

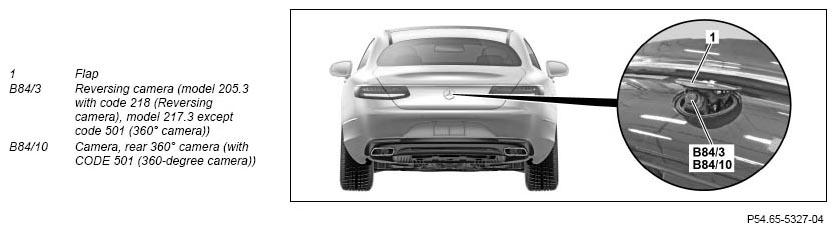

| 6 | Open flap (1) and remove reversing camera (B84/3) or rear 360° camera (B84/10) | ||
| Install | |||
| 7 | Install reversing camera (B84/3) or rear 360° camera (B84/10) and close flap (1) | with code 218 (Rear view camera) Model 217.3 except code 501 (360° camera) Make sure that the water drain hose is seated correctly at the reversing camera (B84/3). |
|
| 8 | Tighten bolts (4) | ||
| 9 | Connect and fasten electrical connection (3) in place | ||
| 10 | Install trunk lid lock and tighten with bolts (2) | ||
| 11 | Install trunk lid cover | Model 217.3 | AR88.50-P-5000LC |
| Model 205.3 with code 218 (Rear view camera) Model 205.3 with code 501 (360° camera) |
AR68.30-P-8151CLW | ||
| Calibrate | |||
| 12 | Perform initial startup of reversing camera (B84/3) or rear 360° camera (B84/10) using diagnostic system | If reversing camera (B84/3) or rear 360° camera (B84/10) was replaced. | |
| AD00.00-P-2000-04B | |||
| 13 | Calibrate camera for rear 360° camera (B84/10) using diagnostic system | Model 205.3 with code 501 (360° camera) Model 217.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B |
