Remove/install trunk lid cover - AR68.30-P-8151CLW
MODEL 205.3

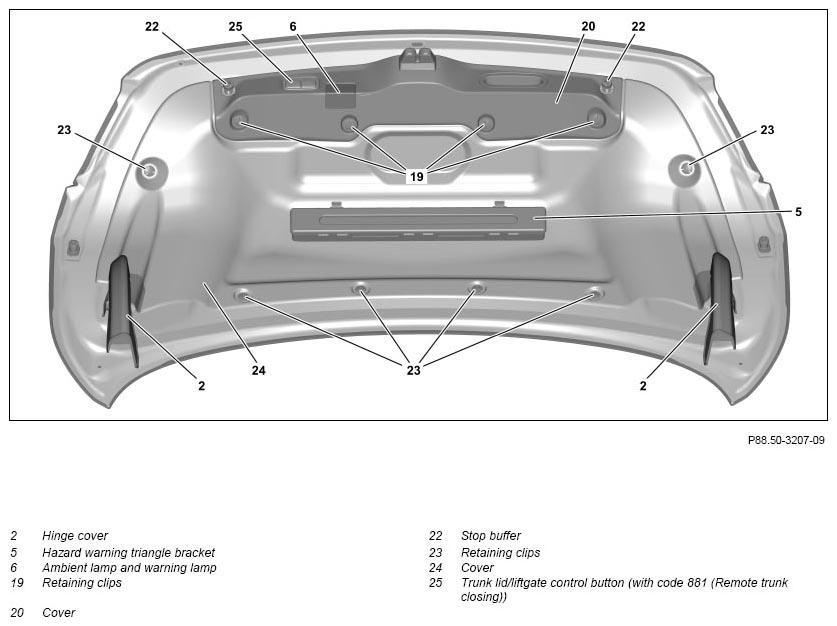

Shown on removed trunk lid
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove warning triangle (5) from warning triangle bracket | ||
| 2 | Remove hazard warning triangle bracket (5) | ||
| 3 | Remove hinge covers (2) | ||
| 4 | Unclip retaining clips (19) and detach paneling (20) until electrical connector on ambient lap and warning lamp (6) is accessible | Figure | |
| 5 | Disconnect electrical connectors from ambient lamp and warning lamp (6) | ||
| 6 | Disconnect electrical connectors from trunk lid/liftgate control button (25) | Model 205.3 with code 881 (Remote boot lid closing) |
|
| 7 | Remove paneling (20) | ||
| 8 | Unscrew stop buffers (22) | ||
| 9 | Unclip retaining clips (23) and remove paneling (24) | Figure | |
| 10 | Install in the reverse order | ||
| Adjust | |||
| 11 | Unscrew stop buffers (22) until trunk lid makes contact with stop buffers (22) when closed |
