Remove/Install Backup Camera - AR54.65-P-0030LW
Model 205.0/1/2
with code 218 (Rear view camera)
Model 205.0/1/2
with code 501 (360° camera)
Model 253.1/9
with code 218 (Rear view camera)
Model 253.1/9
with code 501 (360° camera)

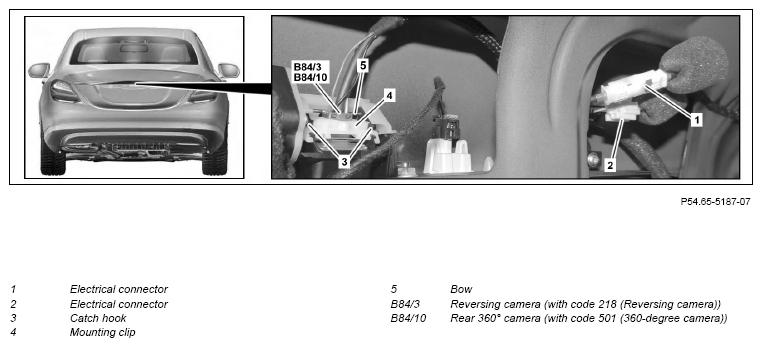

Shown on model 205.0 with code 218 (Reversing camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission reversing camera (B84/3) using vehicle diagnosis system. | Model 205.0/1/2 with code 218 (Rear view camera) except code 235 (Active Parking Assist with PARKTRONIC) |
|
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove trunk lid trim. | Model 205.0/1 with code 218 (Rear view camera) Model 205.0/1 with code 501 (360° camera) |
AR88.50-P-5000LW |
| 3.2 | Remove center liftgate trim. | Model 205.2, 253.1/9 with code 218 (Rear view camera) Model 205.2, 253.1/9 with code 501 (360° camera) |
AR72.20-P-6618LWS |
| 4 | Use suitable tool to push bracket (5) downwards. | ||
| 5 | Release electrical connector (1) and disconnect. | ||
| 6 | Release and disconnect electrical connector (2). | Model 205.0/1/2 with code 218 (Rear view camera) Model 205.0/1/2 with code 501 (360° camera) |
|
| 7 | Release catch hooks (3) and pull out retaining clip (4). | ||
| 8 | Pull out reversing camera (B84/3) or camera for rear 360° camera (B84/10) inwards. | ||
| 9 | Install in the reverse order. | ||
| 10.1 | Calibrate camera for rear 360° camera (B84/10) using vehicle diagnosis system. | Model 205.0/1/2 with code 501 (360° camera) Model 253.1/9 with code 501 (360° camera) After removal/installation of camera for rear 360° camera (B84/10). |
|
| AD00.00-P-2000-04B | |||
| 10.2 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | Model 205.0/1/2 with code 501 (360° camera) Model 253.1/9 with code 501 (360° camera) After removal/installation of camera for rear 360° camera (B84/10) and another 360° camera. |
|
| AD00.00-P-2000-04B | |||
| 10.3 | Calibrate reversing camera (B84/3) using calibration device. | Model 205.0/1/2 with code 218 (Rear view camera) except code 235 (Active Parking Assist with PARKTRONIC) Model 253.1/9 with code 218 (Rear view camera) |
|
| Fig 2 |
