Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600LWA
Transmission 722.9 (except 722.96) in model 205 with engine 274

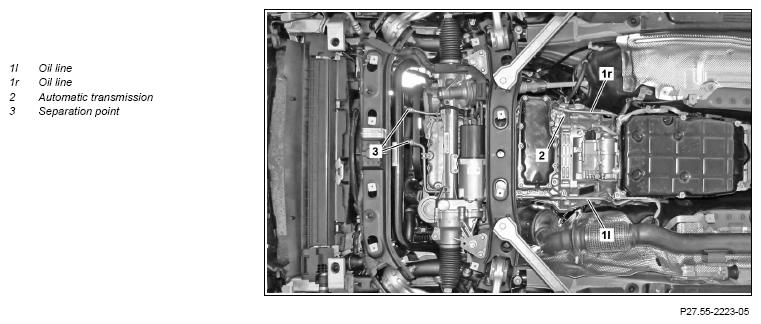

Fig 1: Automatic Transmission Oil Cooling Lines Components Location - Transmission 722.9 (Except 722.96) With Engine 274 In Model 205
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Remove/install | |||
| 1 | Remove lower engine panel | AR61.20-P-1105LW | |
| 2 | Thoroughly clean the area of the oil lines (1l, 1r) in the vicinity of the connecting points (3) | ||
| 3 | Release oil lines (1l, 1r) from connecting points (3) | ||
| *BA27.55-P-1001-01D | |||
| 4 | Detach retaining clamps of the oil lines (1l, 1r) | *BA27.55-P-1007-01D | |
| *BA27.55-P-1003-01D | |||
| 5 | Detach oil lines (1l, 1r) from the automatic transmission (2) and seal using suitable stop plugs | *BA27.55-P-1002-01D | |
| Fig 2 | |||
| 6 | Pull oil lines (1l, 1r) out of the oil cooler and seal using suitable stop plugs | Fig 2 | |
| 7 | Remove oil lines (1l, 1r) | ||
| 8 | Install in the reverse order | ||
| 9 | Check oil level in automatic transmission (2) and correct if necessary | AR27.00-P-0270W | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check automatic transmission (2) for function and leaktightness |
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1001-01D | Union nut, oil line to oil cooler | Nm | 25 |
OIL COOLING
| Number | Designation | Transmission 722.9 | |||
|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | |||
| Hexalobular bolt | Nm | 12 | |||
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1003-01D | Screw, oil cooler oil line to oil pan | Nm | 12 |
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1007-01D | Oil cooler oil line/oil supply line to transfer case | Nm | 12 |
