Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
MODIFICATION NOTES
| 22.09.2016 | Check rear radial shaft sealing ring for leaktightness and damage, added. | Operation step 5 |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmission with torque converter | Engine 276.8 in model 205, 253 with transmission 725.0 with code M005 (4MATIC) | AR27.10-P-0500LWZ |
| Engine 276.8 in model 205 with transmission 722.96 | AR27.10-P-0500LWY | ||
| 2 | Remove screw/bolts (1a) from drive plate (1) | AR03.30-P-8001-02MM | |
| *BA03.30-P-1002-01M | |||

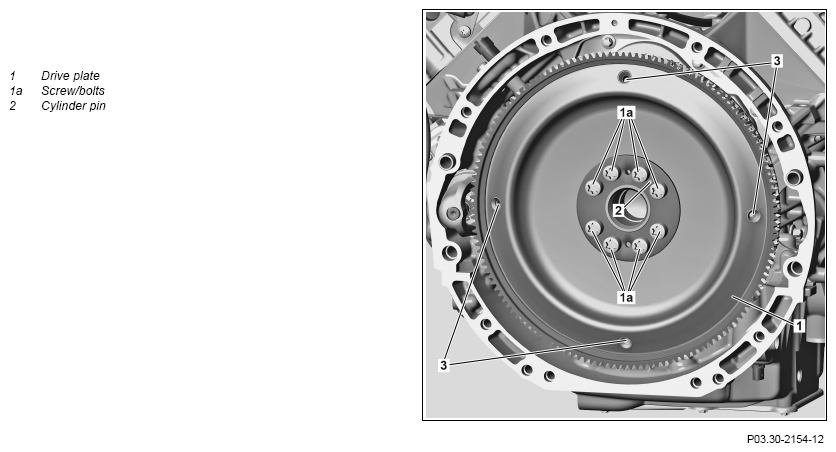

| Fig 1 | |||
| Fig 2 | |||
| 3 | Remove drive plate (1) from crankshaft flange | ||
| 4 | Check drive plate (1) for damage | If damage is present ↓ Install new drive plate (1). |
|
| 5 | Check rear radial shaft sealing ring for leaktightness and damage | In the case of complaints. ↓ Replace rear radial shaft sealing ring. |
AR03.20-P-3063MMV |
| 6 | Install in the reverse order | ||
| 7 |
Perform default initialization and then sensor rotor adaptation using the diagnostic system | Only when replacing the clutch plate (1). | AD00.00-P-2000-04B |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01M | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
