Check Low-Temperature Circuit Cooling System For Leaks - AR09.41-P-1010LW
Model 172 with engine 651
Model 205 with engine 274.9, 276.8, 651
Model 218 with engine 274.9
Model 253 with engine 274.9, 276.8, 642, 651
MODIFICATION NOTES
| 22.06.2016 | Cooling system | ENGINE 274 in MODEL 253 (except 253.354/954) | BF20.00-P-1001-02CA |
| 22.06.2016 | Cooling system | Engine 274 in model 253.954 | BF20.00-P-1001-02CA |
| 04.04.2019 | Cooling system | Engine 274 in model 253.353/354/953/954 | BF20.00-P-1001-02CA |
Shown engine 651 in model 205 except code ME04 (Mild hybrid drive)
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Remove center and front section of the lower engine compartment panelings | Model 172 with engine 651 | AR61.30-P-1001W |
| Model 218 with engine 274.9 | AR61.20-P-1105EW | ||
| Model 205 with engine 274.9, 276.8, 651 Model 253 with engine 274.9, 276.8, 642, 651 |
AR61.20-P-1105LW | ||
| 2 | Remove upper engine cover | ||
| 3 | Unscrew cap (1) on low-temperature circuit coolant expansion reservoir (2) | ||
| Check | |||
| 4 | Check coolant level and antifreeze content coolant in low-temperature circuit | BF20.00-P-1001-02W | |
Model 205.047/147/247 with engine 274.9 Model 218 with engine 274.9 Model 253 (except 253.954) with engine 274.9 Model 253.954 with engine 274.9 Cooling system |
*BF20.00-P-1001-02CA | ||
Model 205 (except 205.012/212) with engine 651 Model 253 with engine 651 Cooling system |
BF20.00-P-1001-02AA | ||
Model 253 with engine 276.8 Cooling system In case the coolant level or antifreeze content in the coolant is too low ↓ Refill antifreeze or adapt antifreeze content of the coolant. |
*BF20.00-P-1001-02BA | ||

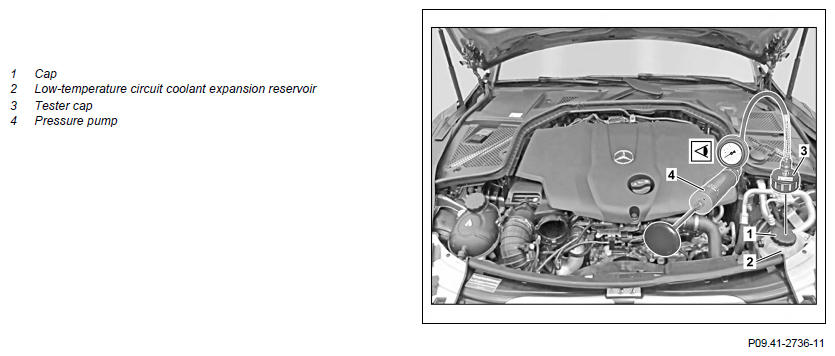

| 5 | Screw tester cap (3) onto low-temperature circuit coolant expansion reservoir (2) | Fig 1 | |
| 6 | Connect pressure pump (4) at tester cap (3) | Fig 2 | |
| 7 | Apply compressed air to low-temperature circuit for 2 minutes at the test pressure | Damage can occur on the engine cooling system otherwise. Test pressure for pressure-testing the engine cooling system |
*BE20.30-P-1005-01A |
| 8 | Perform a visual inspection on the assembly parts carrying coolant and replaced damaged parts if necessary | In the event of pressure loss. | |
| Install | |||
| 9 | Actuate pressure relief button on pressure pump (4) and relieve the pressure | Fig 2 | |
| 10 | Unscrew tester cap (3) from low-temperature circuit coolant expansion reservoir (2) | Fig 1 | |
| 11 | Check coolant level and antifreeze content of coolant in low-temperature circuit | For a previous pressure loss. Model 205.047/147/247 with engine 274.9 Model 218 with engine 274.9 Model 253 (except 253.954) with engine 274.9 Model 253.954 with engine 274.9 Cooling system |
*BF20.00-P-1001-02CA |
Model 205 (except 205.012/212) with engine 651 Model 253 with engine 651 Cooling system |
BF20.00-P-1001-02AA | ||
Model 253 with engine 276.8 Cooling system In case the coolant level or antifreeze content in the coolant is too low ↓ Refill antifreeze, replace coolant or adapt antifreeze content of the coolant. |
*BF20.00-P-1001-02BA | ||
| 12 | Screw cap (1) onto low-temperature circuit coolant expansion reservoir (2) | ||
| 13 | Install upper engine cover | ||
| 14 | Remove front and center section of the lower engine compartment panelings | Model 172 with engine 651 | AR61.30-P-1001W |
| Model 218 with engine 274.9 | AR61.20-P-1105EW | ||
| Model 205 with engine 274.9, 276.8, 651 Model 253 with engine 274.9, 276.8, 642, 651 |
AR61.20-P-1105LW |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 1-stage cover latch | Engine 100, 102, 103, 104, 110, 111, 112, 113, 114, 115, 116, 117, 119, 120, 121, 123, 127, 129, 130, 133, 137, 139, 152, 155, 156, 157, 159, 166, 180, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 285 2-stage latch cover Engine 601, 602, 603, 604, 605, 606, 607, 608, 611, 612, 613, 615, 616, 617, 621, 626, 628, 629, 640, 642, 646, 648, 651, 654, 656, 668 2-stage latch cover |
||
|---|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 | 1, 4 |
COOLING SYSTEM
| Number | Designation | Engine 651 in model 172 | Engine 651 in model 205 (except 205.012/212) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02AA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 9, 8 | ≈ 9, 5 |
| Low temperature circuit | Liter | ≈ 3, 0 | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-00A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-00A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 651 in model 253 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 10, 0 |
| Low temperature circuit | Liter | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 276 in model 205.064/066/164/264/266/364/366/464/466 | Engine 276 in model 253 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 10, 9 | ≈ 9, 5 |
| Low-temperature circuit | I | ≈ 3, 0 | ≈ 2, 5 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | 50/50 | ||
| As of -38°C | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-00A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-00A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 205.040/042/043/044/045/048/049/140/142/143/145/148/240/242/243/244/245/248/340/342/343/345/348/349/440/442/443/445/448/449 | Engine 274 in model 205.047/147/247 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 9, 0 | ≈ 9, 0 |
| Low-temperature circuit | I | ≈ 3, 0 | ≈ 3, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 218 | Engine 274 in model 253 (except 253.353/354/953/954) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 8, 5 | ≈ 9, 0 |
| Low-temperature circuit | I | - | ≈ 5, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 274 in model 253.353/354/953/954 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02CA | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 16, 0 |
| Low-temperature circuit | I | - | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 642 in model 253 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02W | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 13, 0 |
| Low-temperature circuit | I | ≈ 2, 5 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specification Sheet | BB00.40-P-0310-01A | ||||
| Specification Sheet | BB00.40-P-0325-06A | ||||
| Specification Sheet | BB00.40-P-0326-06A | ||||
