Replace Spare Tire Well - Ar64.20-P-1245LW
Model 205.0/1/2/3

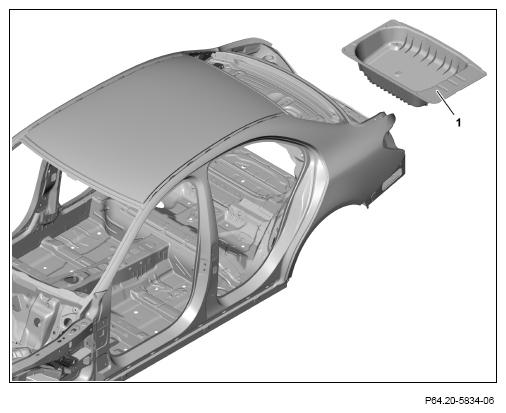

Shown on model 205.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | See AS00.00-Z-0010-01A . | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | See AS00.00-Z-0017-01A . | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | See AH00.00-Z-0300-01A . | ||
| Information on preventing damage to electronic components due to electrostatic discharge | See AH54.00-P-0001-01A . | ||
| Notes on battery | See AH54.10-P-0001-01A . | ||
| General information on body repair | See AH60.00-N-0001-01A . | ||
| Pretreatment of bonding surfaces | See AH60.00-P-0008-01SX . | ||
| General information on MB materials | See AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Remove spare wheel well (1) | Fine cutter Wet/dry vacuum cleaner |
See AR64.20-P-1245-01LW . |
| Primer stick | See *BR00.45-Z-1012-07A . | ||
| 3 | Prepare spare tire well (1) | See AR64.20-P-1245-02LW . | |
| Glazing repair kit, 2-component adhesive | See *BR00.45-Z-1049-02A . | ||
| Install | |||
| 4 | Install spare wheel well (1) | See AR64.20-P-1245-03LW . | |
| Glazing repair kit, 2-component adhesive | See *BR00.45-Z-1049-02A . | ||
| 5 | Clean repair area | Wet/dry vacuum cleaner |
|
| 6 | Install all detachable body components in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1049-02A | Glazing repair kit, 2-component adhesive | A 168 670 00 93 |
