Remove Spare Tire Well - Ar64.20-P-1245-01LW

Model 205.0/1/2/3, 238.3

The higher-level service information as well as the safety information in the service information must be observed.

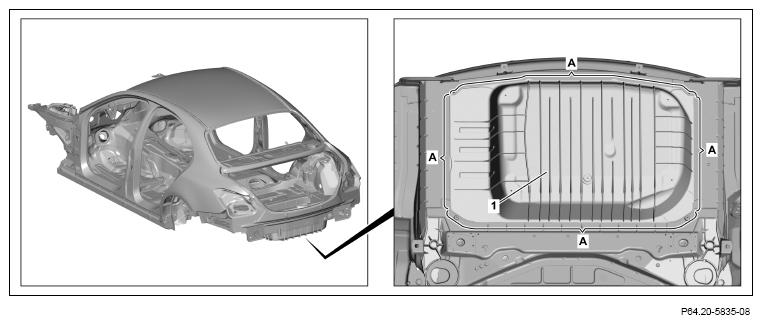

Fig 1: Spare Tire Well Location (Model 205.0/1/2/3, 238.3)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

1. Cut adhesive bead between spare wheel well (1) and body (areas A).

   The spare wheel well (1) is bonded to the body.

2. Remove spare wheel well (1).

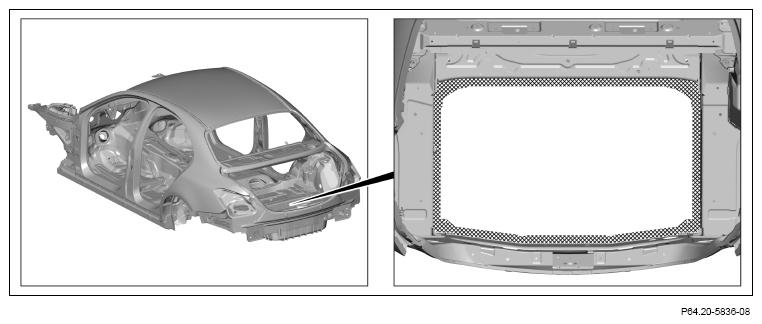

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.0

3. Apply remaining adhesive to body in crosshatched area.
4. Remove loose adhesive material.
5. Repair bare parts with touchup applicator.
6. Prepare bonding surface in crosshatched area for installation.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
