Remove/install inserted rear axle shaft - AR35.30-P-0621LW

MODEL 205

MODIFICATION NOTES

10.12.13	Nut, rear axle shaft to wheel bearing		BA35.30-P-1001-01N
11.3.14	Nut, rear axle shaft to wheel bearing		BA35.30-P-1001-01N

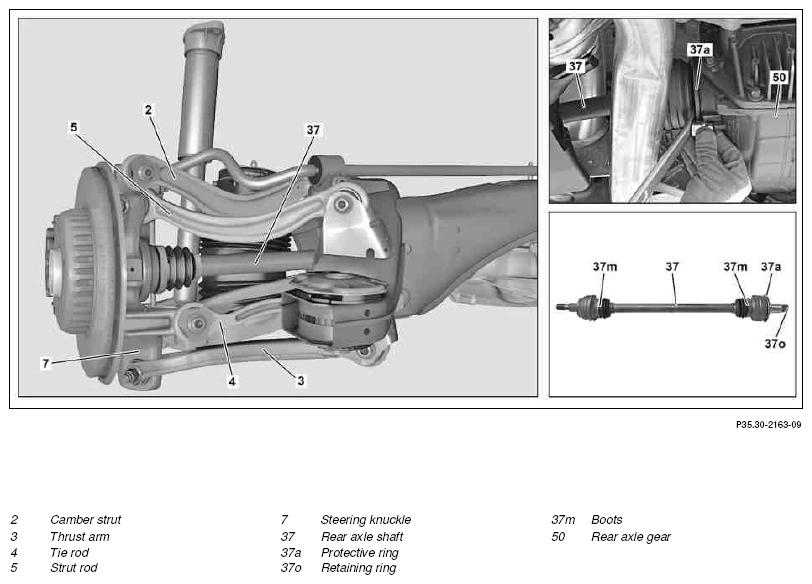

Fig 1: Identifying Rear Axle Shaft Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove corresponding complete rear wheel		AR40.10-P-1101A
3	Detach collar nut of rear axle shaft (37)	Replace collar nut and secure after tightening.
3	Detach collar nut of rear axle shaft (37)	Nut, rear axle shaft to wheel bearing	*BA35.30-P-1001-01N
4	Detach plastic cover from spring control arm
5	Lift steering knuckle (7) until rear axle shaft (37) is almost horizontal	Tighten the threaded connection of the strut rod (5), camber strut (2), thrust arm (3) and tie rod (4).
		Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1002-04M
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
6	Detach camber strut (2), strut rod (5), tie rod (4) and thrust arm (3) from steering knuckle (7)	Screw on the threaded connections loosely.
7	Unclip electrical line of rpm sensor from bracket on steering knuckle (7) and from bracket on wheel arch
8	Disconnect electrical connector from actuator motor of electric parking brake and create access to electrical line		AR42.20-P-0600LW
9	Unclip electrical line of rear axle damping valve unit from bracket on steering knuckle (7) and from bracket on wheel arch	MODEL 205 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS)))
10	Lower steering knuckle (7)	Lift the steering knuckle (7) until the rear axle shaft (37) is almost horizontal.
11	Fold down steering knuckle (7) and pull rear axle shaft (37) out of rear axle shaft flange	If the rear axle shaft (37) is difficult to remove ↓ Press rear axle shaft (37) out of rear axle shaft flange.
			AR35.30-P-0115-03LF
		Extraction and insertion tool	Fig 3
		Bracket	Fig 2
12	Pry rear axle shaft (37) out of rear axle differential (50)	Do not fasten assembly lever to the protective ring (37a). Support the assembly lever on the rear axle differential (50) using e.g. a socket wrench.
13	Take out rear axle shaft (37)	Replace locking ring (37o) on inner spline profile.
	Check
14	Check constant velocity joints	With axial or radial play ↓ Replace rear axle shaft (37).
15	Check boots (37m)	If leaky or damaged ↓ Replace the boot (37m) concerned.
			AR35.30-P-0662-01LW
		Filling capacity for joint housing	*BF35.30-P-1001-01G
16	Check side radial shaft sealing ring in rear axle differential (50)	If leaky or damaged ↓ Replace side radial shaft sealing ring on rear axle differential (50).
16			AR35.31-P-0545LW
17	Install in the reverse order
18	Check oil level in rear axle differential (50) and correct if necessary		AR35.31-P-0520-03LW
		MODEL 205.086/087	*BF35.31-P-1003-01U
		MODEL 205.0 (except 205.086/087), 205.1/2	*BF35.31-P-1002-01U
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
		Sealant, Omni fit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
19	Perform wheel alignment check		AR40.20-P-0200LW

CAMBER STRUT

Number	Designation			MODEL 205
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 2	∠°	90

STRUT ROD

Number	Designation				MODEL 205
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 2	∠°	90

TIE ROD

Number	Designation			MODEL 205
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	Stage 1	Nm	50
BA35.20-P-1002-04M	Self-locking nut, tie rod to rear axle carrier	Stage 2	∠°	90

THRUST ARM

Number	Designation			MODEL 205
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 2	∠°	90

REAR AXLE SHAFT

Number	Designation		MODEL 205
BA35.30-P-1001-01N	Nut, rear axle shaft to wheel bearing	Nm	350

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		MODEL 205
BA35.31-P-1002-02H	Oil filler screw of rear axle differential	Nm	50

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			MODEL 205 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80
		Ø95	g	100
		Ø102	g	120
		Ø106	g	130
		Ø112	g	140
		Ø116	g	150

REAR AXLE DIFFERENTIAL

Number	Designation		MODEL 205.0 (except 205.086/087), 205.1/2
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	ALU HAG183	0, 8
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	Specification	MB 239.71 hypoid gear oil A 001 989 88 03. See https://bevo.mercedes-benz.com/index.php?language_id=1

REAR AXLE DIFFERENTIAL

Number	Designation		MODEL 205.086/087
BF35.31-P-1003-01U	Filling capacity for rear axle differential with differential lock	Liter	1, 2
BF35.31-P-1003-01U	Specification		Hypoid gear oils (Specification 235.61). MB 235.61 AMG hypoid gear oil A 001 989 52 03 10

Fig 2: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
BR00.45-Z-1061-01A	Sealant, Omni fit 100H (50 g)	A 002 989 23 71
