Remove/install low-temperature circuit expansion reservoir with carrier - AR09.41-P-0002MMV
ENGINE 276.8 in MODEL 205

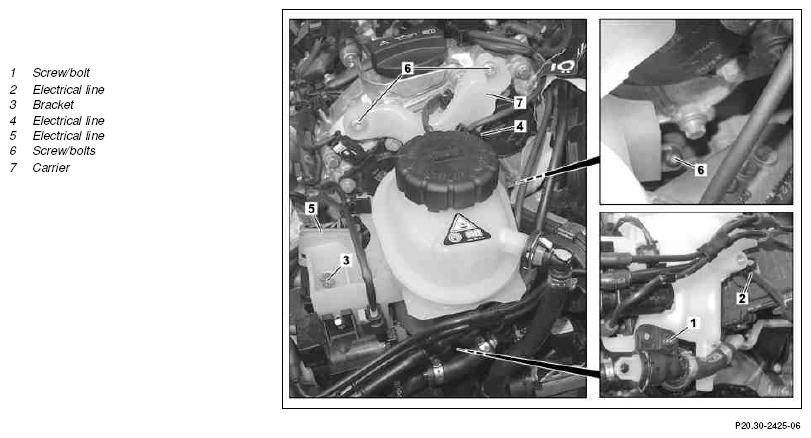

Fig 1: Identifying Low-Temperature Circuit Expansion Reservoir With Carrier Remove/Install Components
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove low-temperature circuit expansion reservoir | AR09.41-P-0001MMV | |
| 2 | Loosen boost pressure actuator and place to one side with attached lines | ||
| 3 | Remove screw/bolt (1) | ||
| 4 | Unclip electrical line (2) from carrier (7) | ||
| 5 | Unclip bracket (3) from carrier (7) | ||
| 6 | Detach electrical line (4) from carrier (7) | ||
| 7 | Remove electrical line (5) from carrier (7) | ||
| 8 | Remove screw/bolts (6) | *BA20.10-P-1009-01AA | |
| *BA20.10-P-1010-01AA | |||
| 9 | Remove carrier (7) | ||
| 10 | Install in the reverse order |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA20.10-P-1009-01AA | Bolt, bracket for expansion reservoir to cylinder head cover | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA20.10-P-1010-01AA | Bolt, bracket for expansion reservoir to cylinder head | Nm | 9 |
