Remove/install low temperature water circuit radiator - AR09.41-P-6935MMV
Engine 274.9 in model 205
Engine 276.8 in model 205
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 2 | Drain off coolant | AR20.00-P-1142LW | |
| 3 | Drain coolant from low-temperature circuit | AR09.41-P-6834LW | |
| 4 | Drain coolant for high-voltage battery cooling system | Engine 274.9 in model 205.047/147/247 | |
| AR20.00-P-1147LWH | |||

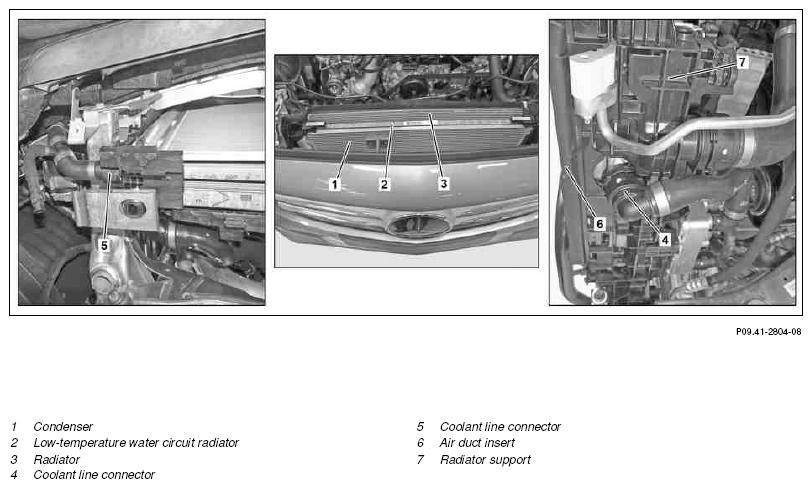

| 5 | Remove condenser (1) | AR83.30-P-6540LW | |
| 6 | Remove front module carrier | AR62.30-P-1570LW | |
| 7 | Unclip upper surrounding air duct insert (6) on radiator support (7) to the front and remove | ||
| 8 | Remove charge air cooler circulation pump, place to one side and secure against falling down | Engine 276.8 in model 205 | AR09.41-P-6925MMV |
| 9 | Detach left coolant line coupling (4) at low-temperature water circuit radiator (2) | AR20.20-P-7441-01RQ | |
| 10 | Detach right coolant line coupling (5) at low-temperature water circuit radiator (2) | AR20.20-P-7441-01RQ | |
| 11 | Unclip left low-temperature water circuit radiator (2) from radiator support (7) | ||
| 12 | Unclip low-temperature water circuit radiator (2) from radiator support (7) and remove upwards | ||
| Check | |||
| 13 | Check low-temperature water circuit radiator (2) for damage and replace if necessary | ||
| 14 | Install in the reverse order | ||
| 15 | Check engine cooling system for leaktightness | AR20.00-P-1010LW | |
| 16 | Check low-temperature circuit cooling system for leaktightness | AR20.00-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Perform an engine test run and check cooling system for proper operation |
