Remove/install condenser - AR83.30-P-6540LW
Model 205 with engine 274, 276, 651
MODIFICATION NOTES
| 20.4.15 | Remove high-voltage battery cooler added. | Operation step 9 |
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01A | ||
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Remove | |||
| 1 | Drain air conditioning system | AR83.30-P-1760LW | |
| 2 | Remove center engine compartment paneling and front engine compartment paneling | AR61.20-P-1105LW | |

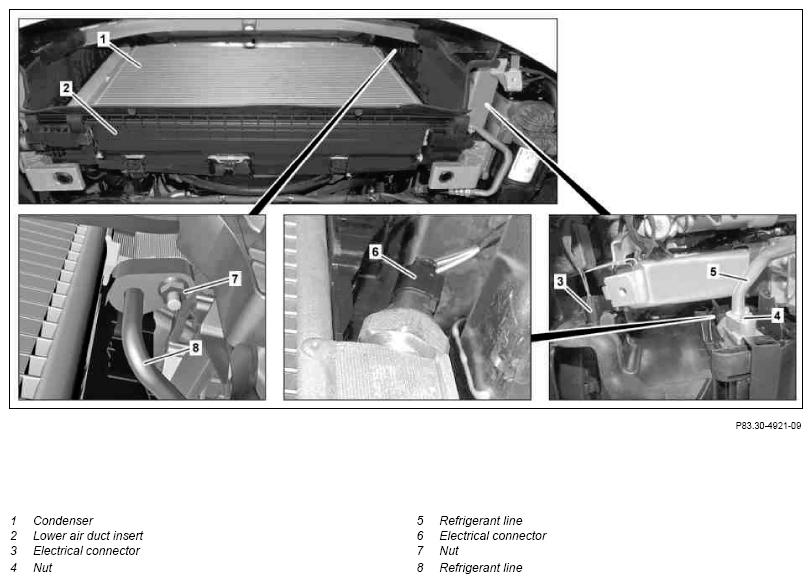

| 3 | Remove lower air duct insert (2) | ||

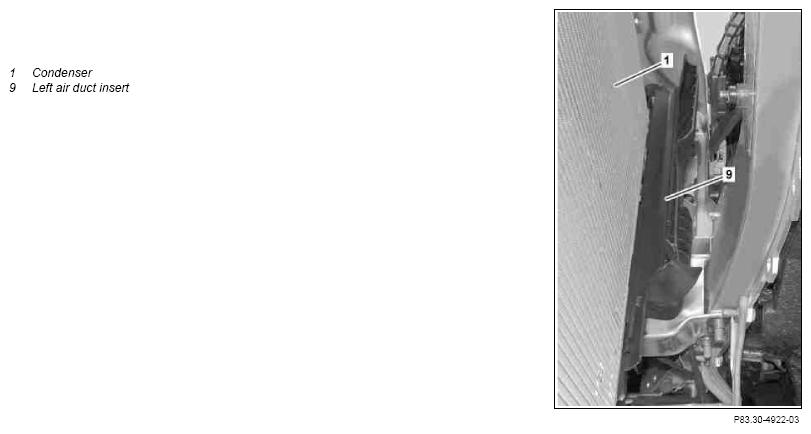

| 4 | Detach left air duct insert (9) and fold away upwards | Upon detaching left air duct insert (9), make sure that condenser (1) is not damaged. Otherwise the condenser (1) must be replaced. |
|
| 5 | Disconnect electrical connector (3) | ||
| 6 | Unscrew nut (4) and remove refrigerant line (5) | Seal opening of refrigerant line (5) with a |
|
| Fig 4 | |||
| 7 | Disconnect electrical connector (6) | ||
| 8 | Unscrew nut (7) and remove refrigerant line (8) | Seal opening of refrigerant line (8) with a |
|
| Fig 4 | |||
| 9 | Remove high-voltage battery cooler | Model 205.047/147/247 with engine 274 | AR20.20-P-3885LWH |

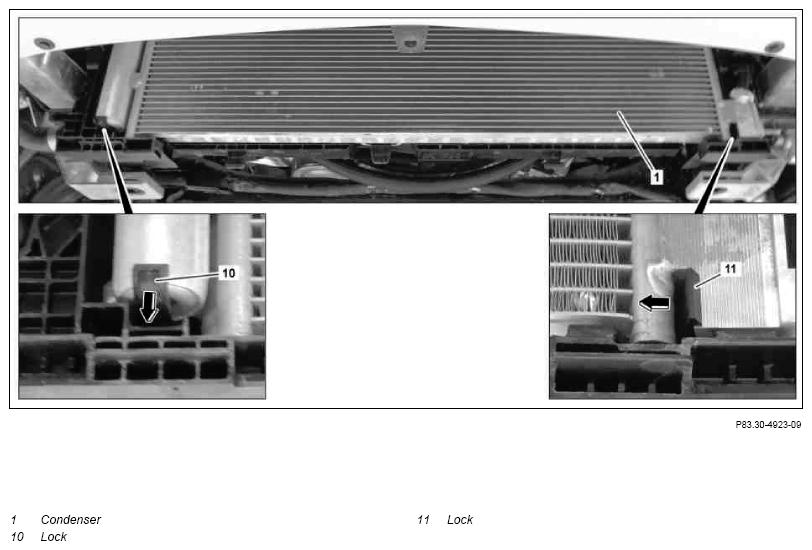

| 10 | Release locks (10, 11) in direction of arrow and guide out condenser (1) downwards | Carefully guide out condenser (1). Otherwise condenser (1) or other components may be damaged. |
|
| Install | |||
| 11 | Install new desiccant cartridge | If required. | |
| AR83.30-P-6521LW | |||
| 12 | Retract condenser (1) from below and engage in locks (10, 11) | Carefully retract condenser (1). Otherwise condenser (1) or other components may be damaged. |
|
| 13 | Install high-voltage battery cooler | Model 205.047/147/247 with engine 274 | AR20.20-P-3885LWH |
| 14 | Attach refrigerant line (8) and tighten nut (7) | ||
| *BA83.30-P-1002-01Q | |||
| 15 | Connect electrical connector (6) | ||
| 16 | Attach refrigerant line (5) and tighten nut (4) | ||
| *BA83.30-P-1002-01Q | |||
| 17 | Connect Electrical connection (3) | ||
| 18 | Fasten air duct insert (9) at left | ||
| 19 | Install air duct insert (2) at bottom | ||
| 20 | Install center engine compartment paneling and front engine compartment paneling | AR61.20-P-1105LW | |
| 21 | Charge air conditioning system | AR83.30-P-1760LW |
AIR CONDITIONING
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA83.30-P-1002-01Q | Nut, line to condenser | Nm | 12 |
