Remove/install charge air cooler, water-cooled - AR09.41-P-6819MRA
Engine 274.9 in model 205
MODIFICATION NOTES
| 26.9.14 | coolant mixing ratio | BF20.00-P-1001-04A |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Remove upper engine cover | ||
| 3 | Drain coolant in low-temperature circuit | AR09.41-P-6834LW | |
| *BF20.00-P-1001-04A | |||

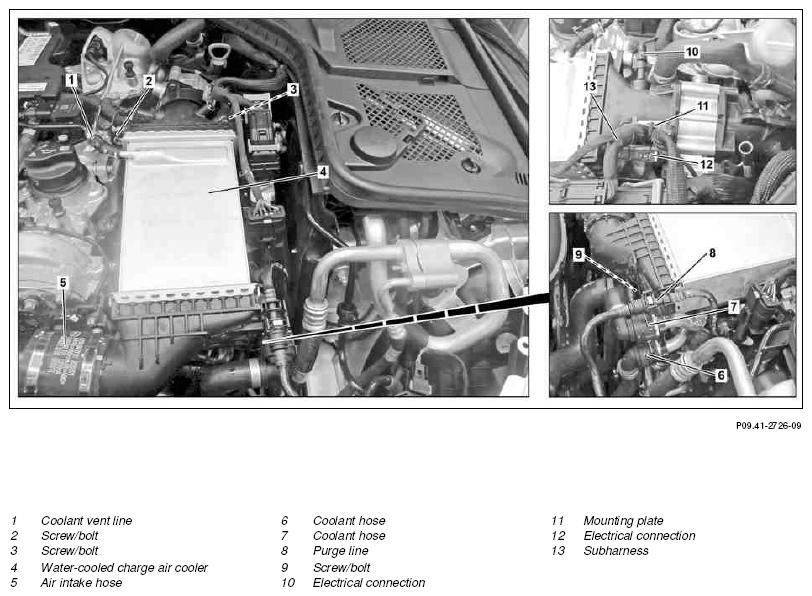

| 4 | Unclip purge line (8) on water-cooled charge air cooler (4) and set aside | ||
| 5 | Detach coolant hoses (6, 7) at the water-cooled charge air cooler (4) | AR09.41-P-1311-01AL | |
| 6 | Detach coolant vent line (1) on water-cooled charge air cooler (4) | ||
| 7 | Disconnect electrical connection (10) on temperature sensor upstream of charge air cooler (B17/11) | ||
| 8 | Disconnect electrical connection (12) at pressure sensor upstream of throttle valve (B28/6) | ||
| 9 | Unclip subharness (13) from ME-SFI [ME] control unit (N3/10) on water-cooled charge air cooler (4) | ||
| 10 | Unclip ME-SFI [ME] control unit (N3/10) together with the holder and place to one side with attached lines | ||
| 11 | Detach mounting plate (11) | ||
| 12 | Remove screw/bolts (2, 3, 9) on water-cooled charge air cooler (4) and remove water-cooled charge air cooler (4) to the front from throttle valve | *BA09.41-P-1002-01U | |
| 13 | Detach air intake hose (5) from water-cooled charge air cooler (4) | ||
| 14 | Pull water-cooled charge air cooler (4) up and out | ||
| 15 | Install in the reverse order | ||
| 16 | Check low-temperature circuit of engine cooling system for leaktightness | AR09.41-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.41-P-1002-01U | Screw/bolt, water-cooled charge air cooler to bracket | Nm | 9 |
COOLANT MIXING RATIO
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | to -37°C | 50/50 |
| Antifreeze/water | to -45°C | 55/45 | ||
| Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
