Remove/install charge air cooler, water-cooled - AR09.41-P-6819MMV
ENGINE 276.8 in MODEL 205
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove front section of lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Open cap of low-temperature circuit expansion reservoir slowly and take off | ||
| 3 | Drain coolant from low-temperature circuit | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| *BF20.00-P-1001-04A | |||
| 4 | Remove charge air pipe | AR09.41-P-8620MMV | |

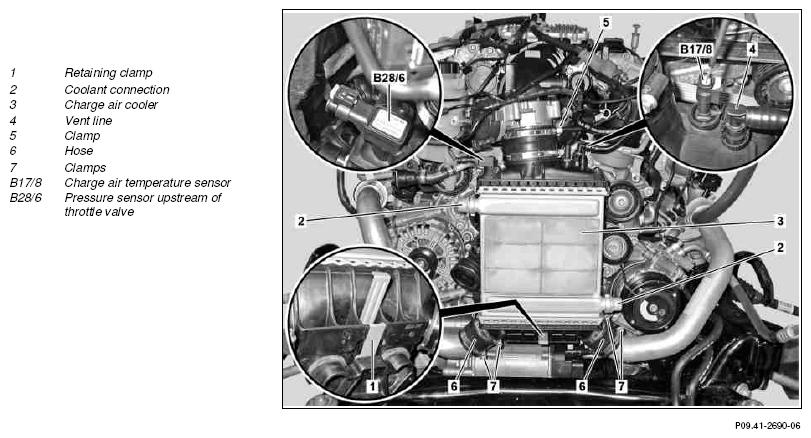

| 5 | Detach coolant hoses on coolant connections (2) | AR20.20-P-7441-01RQ | |
| 6 | Detach vent line at thermostat housing hose | ||
| 7 | Detach vent line (4) at charge air cooler (3) | ||
| 8 | Disconnect electrical line at charge air temperature sensor (B17/8) and on pressure sensor upstream of throttle valve (B28/6) | ||
| 9 | Unclip retaining clamp (1), pull charge air cooler (3) to the front and to the left side of vehicle and remove upwards | ||
| 10 | Detach connection piece between throttle valve and charge air cooler (3) | When replacing the charge air cooler (3) | |
| 11 | Remove charge air temperature sensor (B178) | When replacing the charge air cooler (3) | |
| 12 | Remove pressure sensor upstream of throttle valve (B28/6) | When replacing the charge air cooler (3) | |
| 13 | Install in the reverse order | ||
| 14 | Check cooling system for leaktightness | AR20.00-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Carry out an engine test run while checking the cooling system for leaktightness and the engine for proper operation |
COOLANT MIXING RATIO
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | to -37°C | 50/50 |
| Antifreeze/water | to -45°C | 55/45 | ||
| Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
| Specification | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
