Remove/install charge air ducts - AR09.41-P-8620MMV
ENGINE 276.8 in MODEL 205
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right and left engine air intake duct upstream of air filter | ||

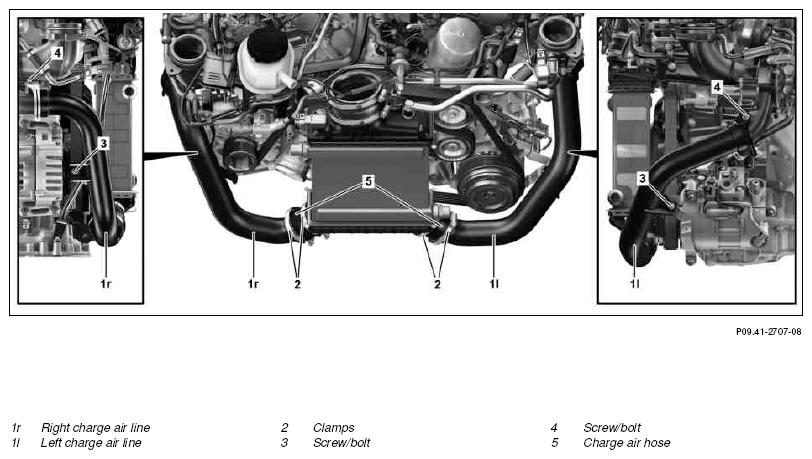

| 3 | Remove screw/bolt (4) and take out clamp | *BA09.41-P-1006-01R | |
| 4 | Remove screw/bolt (3) | ||
| 5 | Loosen clamps (2) | ||
| 6 | Pull off charge air line on the right and left (1r, 1l) from ATL and charge air cooler | ||
| Fig 2 | |||
| 7 | Remove right and left charge air line (1r, 1l) from engine compartment | ||
| 8 | Pull off charge air hose (5) from right or left charge air line (1r, 1l) | When replacing the right and left charge air line (1r, 1l) | |
| Check | |||
| 9 | Check boots, seals and clamps for damage and replace if necessary | ||
| 10 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
