Retrofit illuminated door sill molding - AZ82.20-P-0001LW

Model 205.0 (except 205.012/047/064/086/087)

Model 205.2 (except 205.212/247/264/286/287)

MODIFICATION NOTES

26.9.14

Electrical line bridge added

Operation steps 11 to 16

AZ82.20-P-0001-04LW

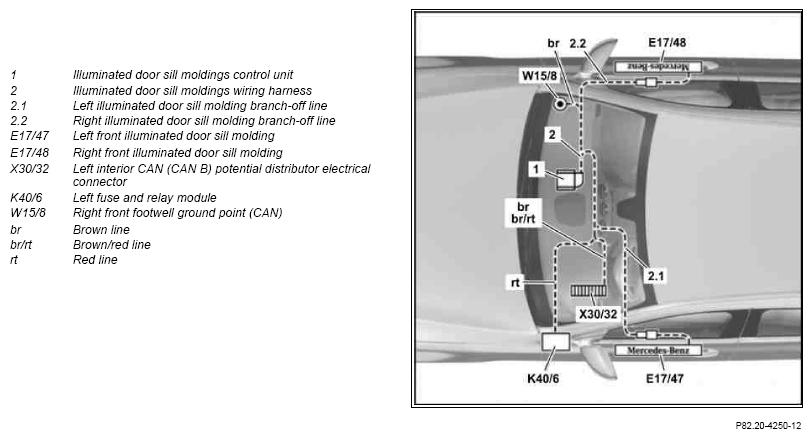

Fig 1: Identifying Illuminated Door Sill Molding Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move driver seat and front passenger seat towards rear
2	Disconnect battery ground line
			AR54.10-P-0003LW
3	Remove left and right front inner door sills
4	Remove cover below left of instrument panel
			AR68.10-P-1500LW
5	Remove cover below right dashboard
			AR68.10-P-1520LW
6	Remove side paneling of instrument panel at left
7	Remove left and right front door sills	Left and right door sills are no longer required.
7	Remove left and right front door sills	Mounting wedge	Fig 2
8	Remove front left floor covering
			AR68.20-P-2050LW
9	Remove front right floor covering
			AR68.20-P-2070LW
	Install
10	Retrofit illuminated door sill molding wiring harness (2)		AZ82.20-P-0001-04LW
10	Retrofit illuminated door sill molding wiring harness (2)	Right front footwell ground point (CAN)	*BA00.19-P-1019-01E
11	Retrofit left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)		AZ82.20-P-0001-01LW
12	Retrofit illuminated door sill molding control unit (1)		AZ82.20-P-0001-05LW
12	Retrofit illuminated door sill molding control unit (1)	Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
13	Install remaining parts
	Update Vehicle Documentation (VeDoc)
14	Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001LW " under field organization texts for DG 68 and DG 82
	Check
15	Perform function check on left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)	The left front illuminated door sill molding (E17/47) is switched on by opening the front left door and the right front illuminated door sill molding (E17/48) is switched on by opening the front right door. The left front illuminated door sill molding (E17/47) or right front illuminated door sill molding (E17/48) switches off automatically approx. 5 min after opening the respective door.

GROUND POINTS

Number	Designation			Model 205
BA00.19-P-1019-01E	Right front footwell ground point (CAN)	W15/8	Nm	10

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1084-02A	Self-adhesive Velcro fastener

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (please refer EPC)	Scope of supply of illuminated door sill moldings	1
KG 98 (please refer EPC)	Electrical line bridge	1
