Retrofit SD card navigation - AN82.85-P-0007LW

Model 205.0/1/2 with code 522 (Audio 20 radio)

Shown on LHD model

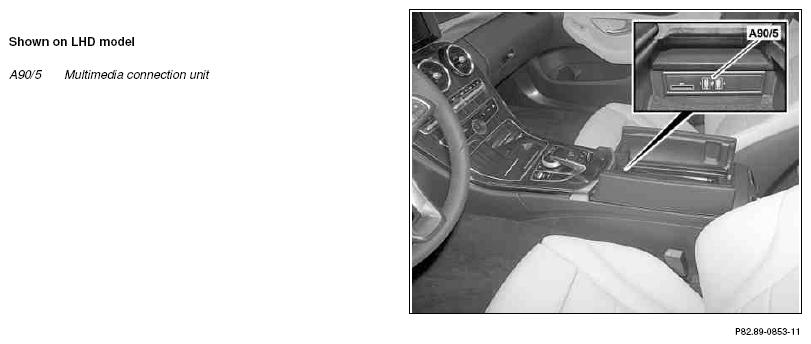

Fig 1: Retrofitting SD Card Navigation - Shown On LHD Model

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury  caused by contact with battery gel when handling damaged lead-gelbatteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses.	AS54.10-Z-0001-02A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries  due to thermal changes. Risk of poisoning  from swallowing battery electrolyte.	Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department.	AS54.10-Z-0001-04A
1	Disconnect ground line to battery
	Notes on battery		AH54.10-P-0001-01A
	Notes for 12-V lithium-ion battery		AH54.10-P-0004-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
			AR54.10-P-0003LW
2	Remove cover on center console
		Vehicles with transmission 722, 724, 725	AR68.20-P-2350LW
		Vehicles with transmission 716	AR68.20-P-2350LWA
3	Remove head unit
			AR82.85-P-1100LW
4	Remove USB electrical connector in front stowage compartment
			AR82.60-P-1032LW
		The USB electrical connector is no longer required.
5	Remove instrument cluster
			AR54.30-P-6015LW
6	Remove cover on right under the dashboard
			AR68.10-P-1520LW
7	Remove right front floor covering
			AR68.20-P-2070LW
	Install
8	Fabricate wiring harness for SD card navigation		AN82.85-P-0007-05LW
		Wiring harness repair kit	Fig 2
9	Retrofit wiring harness for SD card navigation		AN82.85-P-0007-06LW
		Nut, positive line to instrument panel fuse box	*BA54.15-P-1005-01K
		Additional battery ground point	*BA00.19-P-1021-01E
10	Install global positioning system (GPS) antenna.		AN82.85-P-0007-02LW
		Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
11	Install multimedia connection unit (A90/5) in front stowage compartment
			AR82.60-P-1032LW
12	Install remaining parts
	Update Vehicle Documentation (VeDoc)
13	Add special equipment to online vehicle data card	CODE 355 (Preinstallation for navigation retrofit) or CODE 357 (Map navigation)
14	Attach note "SD card navigation retrofitted as per AN82.85-P-0007LW " under field organization texts to design group 82
15	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
16	Perform variant coding with XENTRY using the software calibration number (SCN)	"Instrument cluster" "Head unit"
17	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
18	Perform function test	See operator's manual for SD card navigation.

Fig 2: Identifying Wiring Harness Repair Kit (220 589 01 99 00)

Courtesy of MERCEDES-BENZ USA
