Overview of exterior lights system components - GF82.10-P-9998RF
Model 205, 253
Headlamp range adjustment reference
The headlamp range adjustment is installed in vehicles that do not have any of the following equipment features:
Vehicle with halogen headlamps
- Code 460 (Canada version)
- Code 494 (USA version)
- Air suspension (model 205 with CODE 483 (ADVANCED AGILITY package) and CODE 489 (AIRMATIC), model 253 with CODE 489 (AIR BODY CONTROL))
Vehicle with LED headlamps (static)
- Code 460 (Canada version)
- Code 494 (USA version)
- Air suspension (model 205 with CODE 483 (ADVANCED AGILITY package) and CODE 489 (AIRMATIC), model 253 with CODE 489 (AIR BODY CONTROL))
Vehicle with LED headlamps (dynamic)
- Air suspension (model 205 with CODE 483 (ADVANCED AGILITY package) and CODE 489 (AIRMATIC), model 253 with CODE 489 (AIR BODY CONTROL))
In the following illustration legend, all the components that are relevant for headlamp range adjustment or air suspension are shown with the note "Headlamp range adjustment" or "Air suspension".

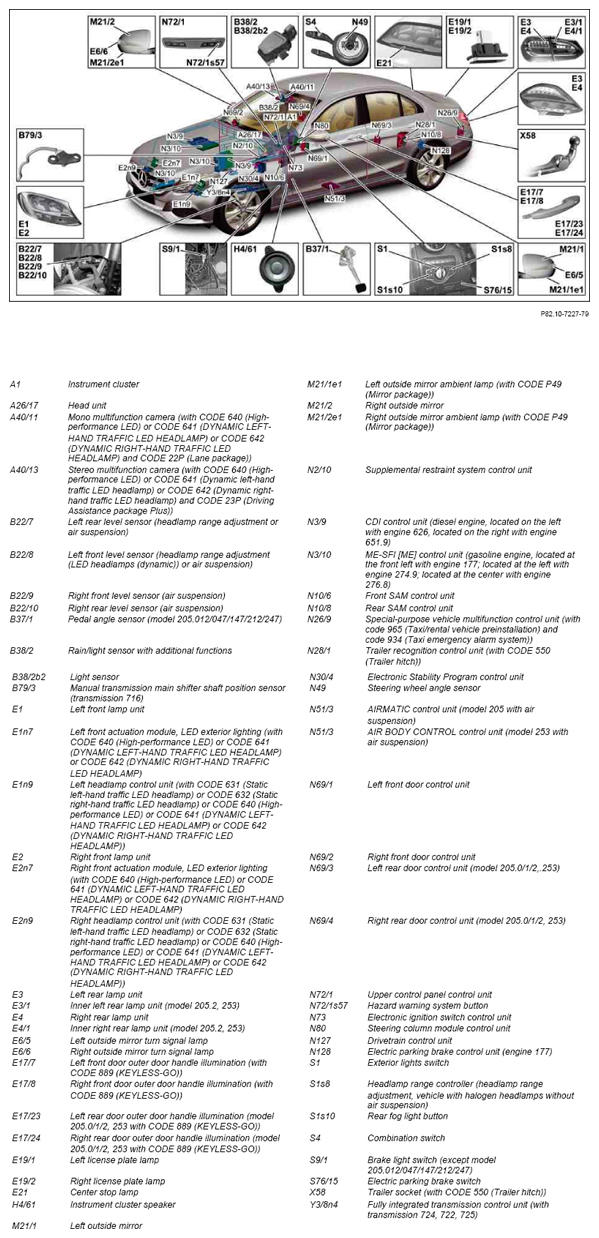

Shown: Model 205.0

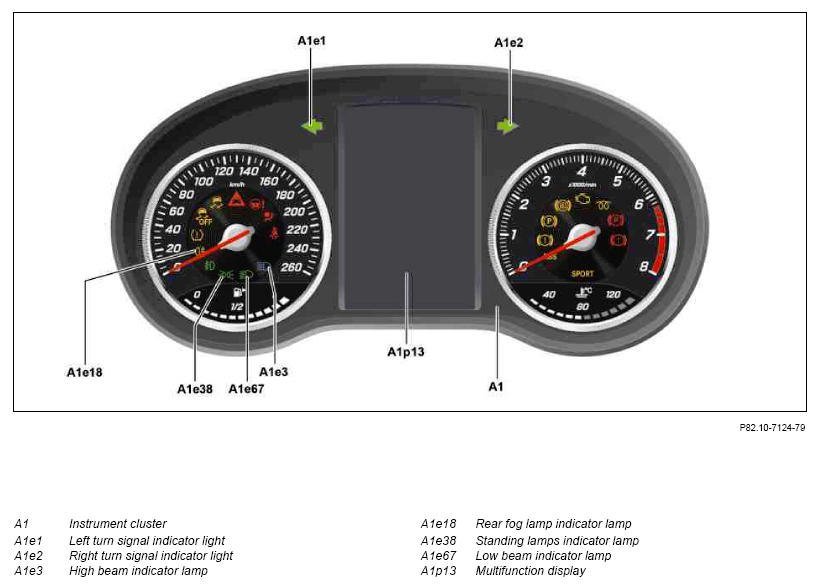

Exterior lights indicators

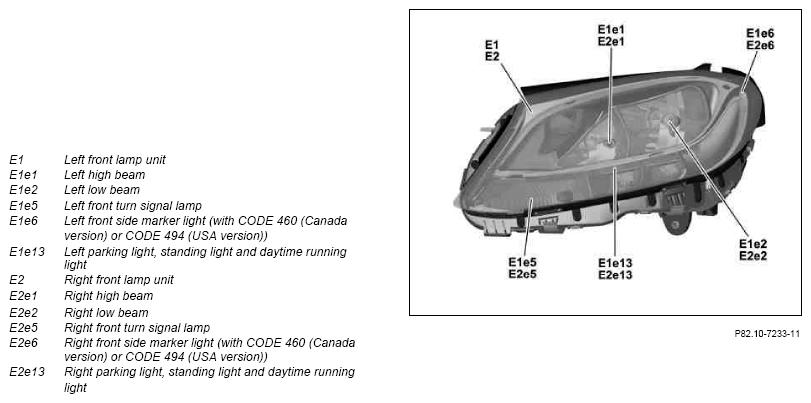

Halogen headlamp (except CODE 631 (Static left-hand traffic LED headlamp) and except CODE 632 (Static right-hand traffic LED headlamp) and except CODE 640 (High-performance LED) and except CODE 641 (Dynamic left-hand traffic LED headlamp) and except CODE 642 (Dynamic right-hand traffic LED headlamp)), shown on model 205 with CODE 460 (Canada version) or CODE 494 (USA version)
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1) (headlamp range adjustment)
- Right headlamp range adjustment actuator motor (E2m1) (headlamp range adjustment)

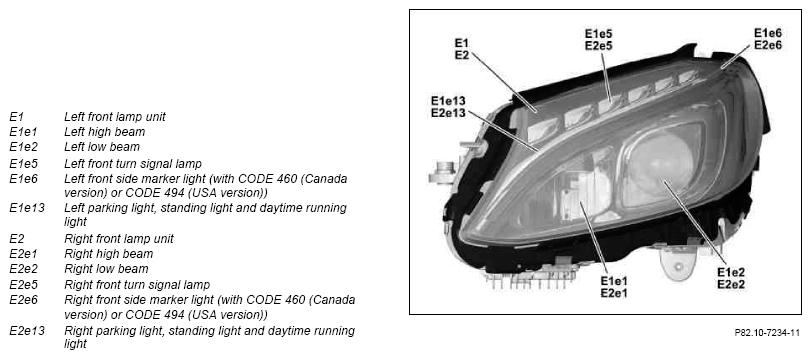

LED headlamp (static) (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp)), shown on model 205 with CODE 460 (Canada version) or CODE 494 (USA version)
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1) (headlamp range adjustment)
- Right headlamp range adjustment actuator motor (E2m1) (headlamp range adjustment)

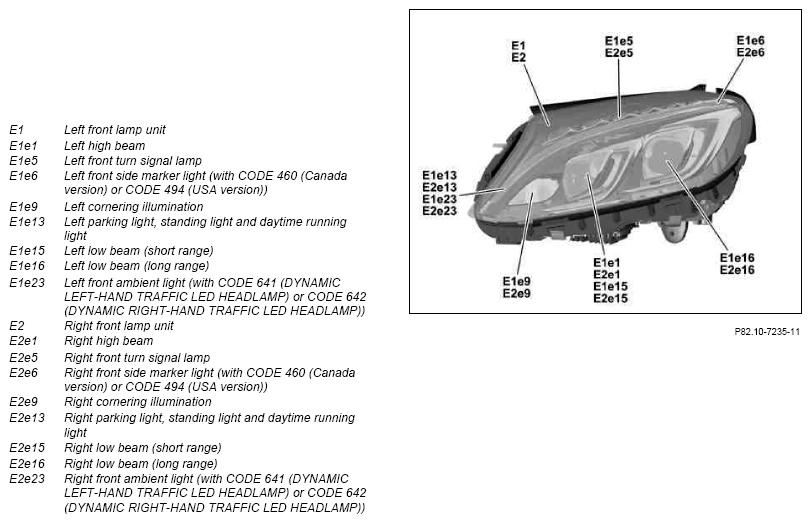

LED headlamp (dynamic), model 205 (with code 640 (High performance LED) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp)), shown with code 460 (Canada version) or code 494 (USA version)
The following components are not shown:
- Left active curve lights position sensor (E1b1)
- Left light distribution position sensor (E1b2)
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1m5)
- Right active curve lights position sensor (E2b1)
- Right light distribution position sensor (E2b2)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)

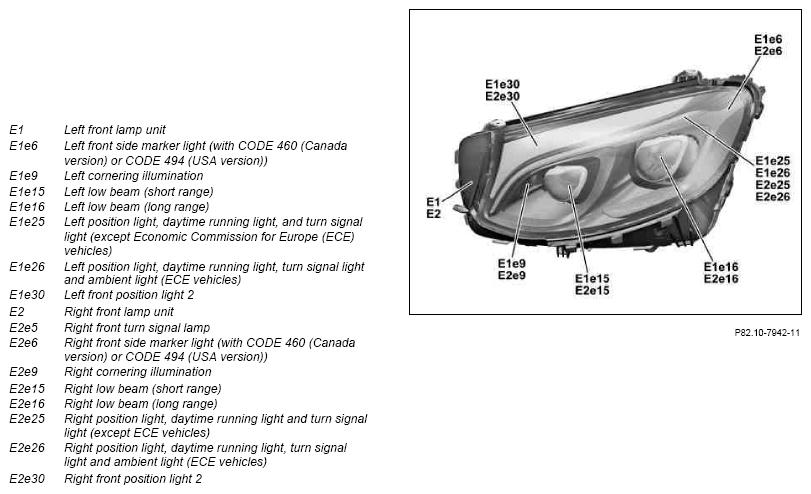

LED headlamp (dynamic), model 253 (with code 640 (High performance LED) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp)), shown with code 460 (Canada version) or code 494 (USA version)
The following components are not shown:
- Left active curve lights position sensor (E1b1)
- Left light distribution position sensor (E1b2)
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1m5)
- Right active curve lights position sensor (E2b1)
- Right light distribution position sensor (E2b2)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)

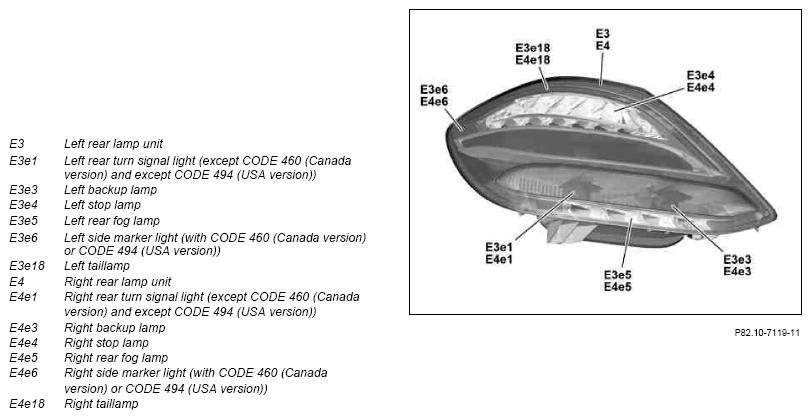

Rear lamp unit, model 205.0/1 (except CODE 631 (Static left-hand traffic LED headlamp) and except CODE 632 (Static right-hand traffic LED headlamp) and except CODE 640 (High-performance LED) and except CODE 641 (Dynamic left-hand traffic LED headlamp) and except CODE 642 (Dynamic right-hand traffic LED headlamp))

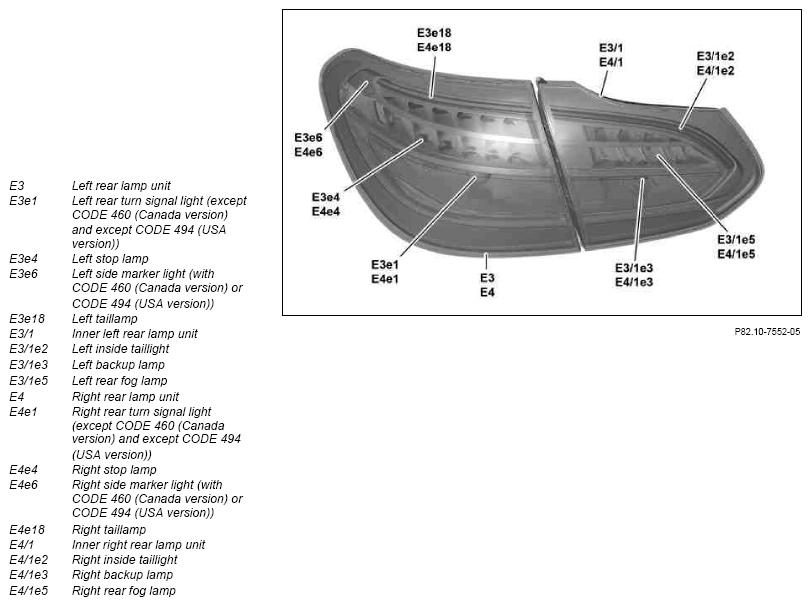

Rear lamp unit, model 205.2, 253, shown on model 205.2 except code 631 (Static left-hand traffic LED headlamp) and except code 632 (Static right-hand traffic LED headlamp) and except code 640 (High Performance LED) and except code 641 (Dynamic left-hand traffic LED headlamp) and except code 642 (Dynamic right-hand traffic LED headlamp)
| Component description for instrument cluster | A1 | GF54.30-P-6000RF |
| Head unit, component description | Model 205 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF |
| Model 205 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | |
| Model 205 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | |
| Component description for multifunction camera | Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) A40/11, A40/13 |
GF54.21-P-3300RF |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF |
| Actuation module, LED exterior lighting, front, component description | Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7 |
GF82.10-P-2160RF |
| Headlamp control unit, component description | Model 205, 253 with code 631 (Static LED headlamps, left-hand traffic) Model 205, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RF |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF |
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651 N3/9 |
GF07.16-P-6000OLD |
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | |
| Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | |
| Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | |
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 N3/10 |
GF07.61-P-6000MNA |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | |
| Model 205.047/147/247 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | |
| Model 205 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 205 with code 965 (Preinstallation for hire car) N26/9 |
GF54.21-P-4010RF |
| Component description for trailer recognition control unit | Model 205, 253 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/047/147/212/247), 253 (except 253.354/954) N30/4 |
GF42.45-P-5119RF |
| Model 205.012/047/147/212/247 N30/4 |
GF42.45-P-5119RFH | |
| AIRMATIC control unit, component description | Model 205 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110RF |
| AIR BODY CONTROL control unit, component description | Model 253 with code 489 (AIR BODY CONTROL) N51/3 |
GF32.22-P-5111RF |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF |
| Component description for rear door control unit | Model 205.0/1/2, 253 N69/3, N69/4 |
GF72.29-P-6021RF |
| Upper control panel control unit, component description | N721, N72/1s57 | GF54.21-P-6040RF |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF |
| Drivetrain control unit, component description | Model 205 with engine 177.9 N127 |
GF54.21-P-2141MNA |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | |
| Model 205.047/147/247 with engine 274.9 N127 |
GF54.21-P-2141MRH | |
| Model 205 with engine 276.8 N127 |
GF54.21-P-2141RF | |
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | |
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | |
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) Y3/8n4 |
GF27.60-P-5165AHE |
| Model 205 with transmission 722.930 Y3/8n4 |
GF27.60-P-5165AIA | |
| Model 205 with transmission 724.2 Y3/8n4 |
GF27.60-P-5165RFH | |
| Model 205 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANG | |
| Model 253 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANI | |
| Table of contents for function description of exterior lights | GF82.10-P-0999RF |
