Remove/install rear seat backrest head restraint guides - AR91.16-P-1775LW
Model 205.0/1/2/3
Model 253

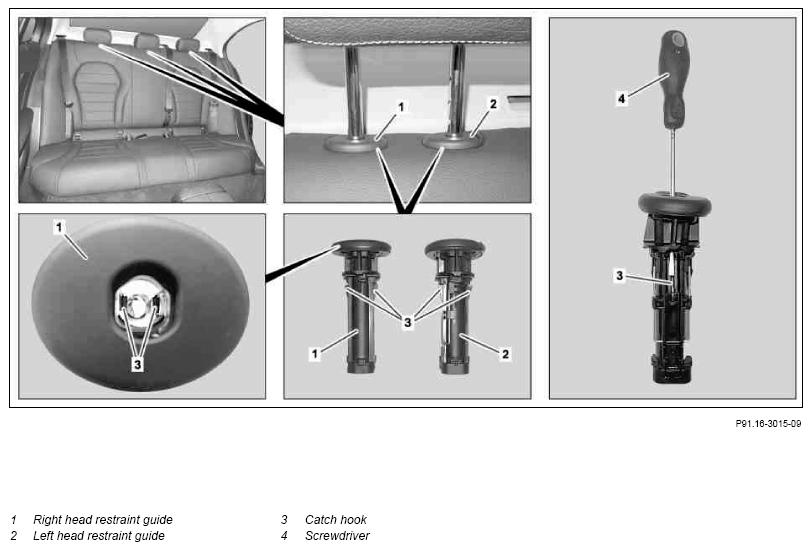

Fig 1: Identifying Rear Seat Backrest Head Restraint Guides Remove/Install Components - Shown On Model 205.0
Shown on MODEL 205.0 except CODE 287 (Foldable rear seat backrests)
| Remove | |||
| 1 | Remove head restraint | AR91.16-P-1770LW | |
| 2 | Press both catch hooks (3) at right head restraint guide (1) or left head restraint guide (2), as shown, with a screwdriver (4) and pull out left head restraint guide (1) or right head restraint guide (2) towards top | ||
| Install | |||
| 3 | Insert new right head restraint guide (1) or new left head restraint guide (2) into backrest from above and engage | ||
| 4 | Install heat restraint | AR91.16-P-1770LW |
