Removing rear head restraint - AR91.16-P-1770LW

Model 205.0/1/2/3

Model 253

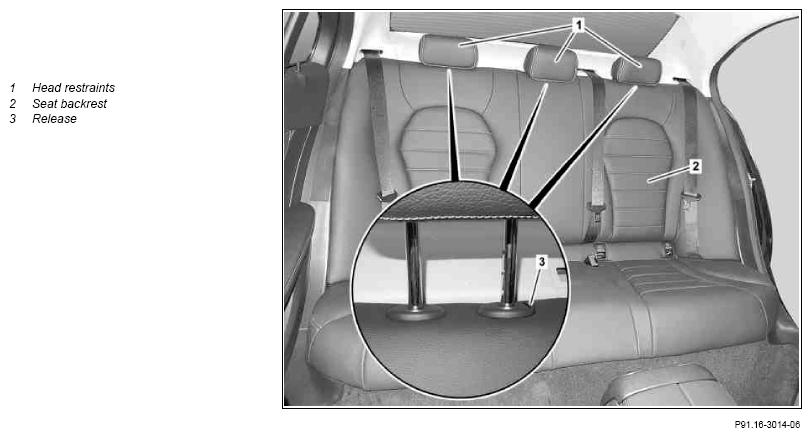

Shown on MODEL 205.0 except CODE 287 (Foldable rear seat backrests)

Fig 1: Identifying Head Restraints, Seat Backrest And Release - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

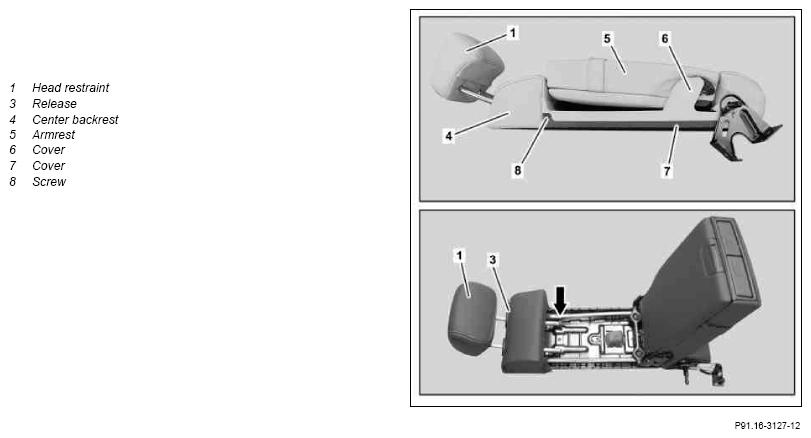

Shown on the center head restraint (1) on model 253 with code 287 (Foldable rear seat backrests)

Fig 2: Removing Rear Head Restraint - Shown On Center Head Restraint

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Release backrest (2) and tilt forwards until corresponding head restraint (1) can be removed	Model 205.0/1 except code 287 (Folding rear seat backrests)
			AR91.12-P-1620LW
1.2	Release left or right backrest (2) and fold forwards until corresponding head restraint (1) can be removed	Model 205.0/1 with code 287 (Folding rear seat backrests) Model 205.2/3 Model 253
2	Remove panel (6) behind armrest (5)	Model 253 When removing center head restraint (1).
			AR91.12-P-1745LW
3	Remove retaining clip (arrow) of head restraint (1)	Model 253 When removing center head restraint (1).
4	Operate release (3) and pull head restraint (1) out of head restraint guides
5	Install in the reverse order
