Remove/install front seat adjustment mechanism - AR91.10-P-1450LW

Model 205.0/1/2/3

Model 253

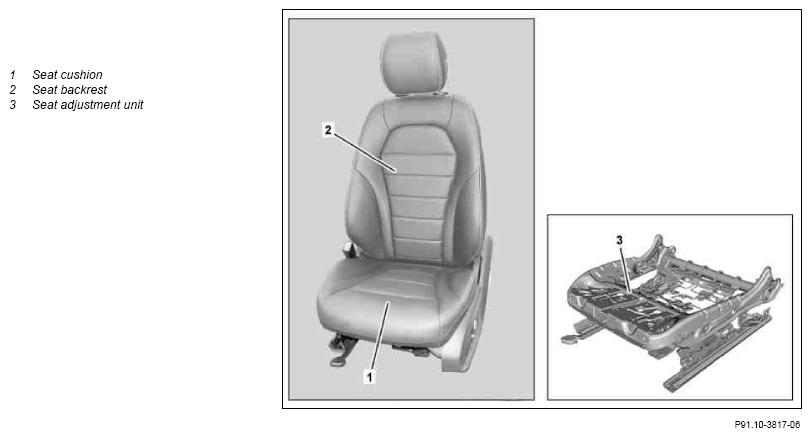

Fig 1: Identifying Front Seat Adjustment Mechanism Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right backrest (2)		AR91.10-P-1060LW
2	Remove seat cushion (1)		AR91.10-P-3310LW
3	Remove all control units and brackets from seat adjustment unit (3)	The number of control units and brackets differs depending on equipment installed.
4	Remove lines and wiring harnesses from seat adjustment unit (3)	Fix the lines and wiring harnesses in place at the seat adjustment unit (3) so that unrestricted adjustment of the seat is possible. Otherwise the lines and wiring harnesses may be sheared off or crushed. The number and type of lines and wiring harnesses differs depending on the equipment installed.
5	Remove covers at seat adjustment unit (3)
6	Install in the reverse order
