Remove/install seat belt buckle (front seat) - AR91.40-P-1515LW

Model 205.0/1/2/3

Model 253

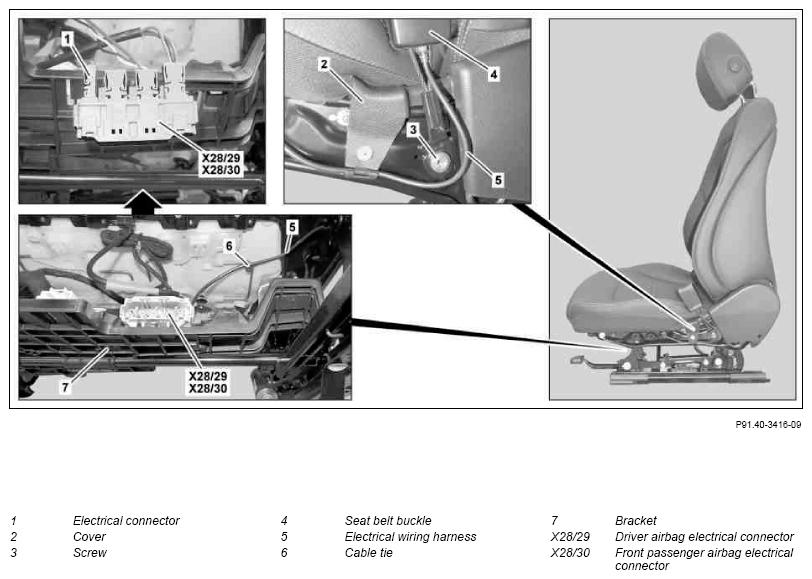

Fig 1: Identifying Seat Belt Buckle (Front Seat) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0

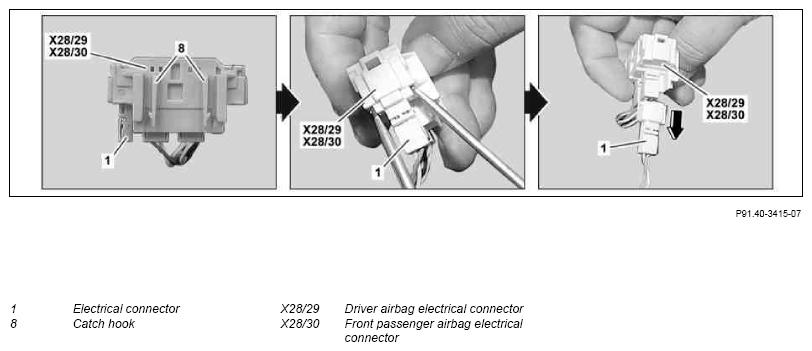

Fig 2: Identifying Seat Belt Buckle (Front Seat) Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove driver or front passenger seat and set down on backrest		AR91.10-P-1000LW
2	Release catch hook (8) and remove driver side airbag electrical connector (X28/29) or passenger side airbag electrical connector (X28/30) from bracket (7)
3	Remove electrical connector (1) of electrical wiring harness (5) using two suitable screwdrivers and remove from driver side airbag electrical connector (X28/29) or passenger side airbag electrical connector (X28/30)	Carefully remove electrical connector (1). Otherwise, this may be damaged.
4	Release electrical wiring harness (5) from paneling (2) and expose	Fix electrical wiring harness (5) in place at seat frame such that adjustment of the driver or front passenger seat is possible without limitation. Otherwise shearing off or crushing of the electrical wiring harness (5) may occur. Replace cable tie (6).
		Clip remover	Fig 3
5	Unscrew bolt (3) and remove buckle (4)	Note correct installation position of belt buckle (4).
		Bolt, front seat belt buckle	*BA91.40-P-1004-01U
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.0	Model 205.1
BA91.40-P-1004-01U	Bolt, front seat belt buckle	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 205.3
BA91.40-P-1004-01U	Bolt, front seat belt buckle	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 253
BA91.40-P-1004-01U	Bolt, front seat belt buckle	Nm	35

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
