Remove/install radial shaft sealing rings on axle shafts (with transmission installed) - AR26.40-P-0339NKB
TRANSMISSION 711.6 in MODEL 117, 156, 176, 242, 246
| Remove/install | |||
| 1 | Remove bottom engine compartment paneling | MODEL 117, 176, 242, 246 with ENGINE 270 with TRANSMISSION 711.6 MODEL 156 with TRANSMISSION 711.6 |
AR61.20-P-1105NKB |
| MODEL 117, 176, 246 with ENGINE 607 with TRANSMISSION 711.6 MODEL 117, 176, 246 with ENGINE 651 with TRANSMISSION 711.6 |
AR94.30-P-5300NKB | ||
| 2 | Drain transmission oil | AR26.00-P-0200NKB | |
| 3 | Remove respective front axle shaft | AR33.30-P-0620NKB | |
| 4 | Detach heat shield from crankcase and axle shaft bearing housing | Only when removing the radial shaft sealing ring (1) of right front axle shaft. | |

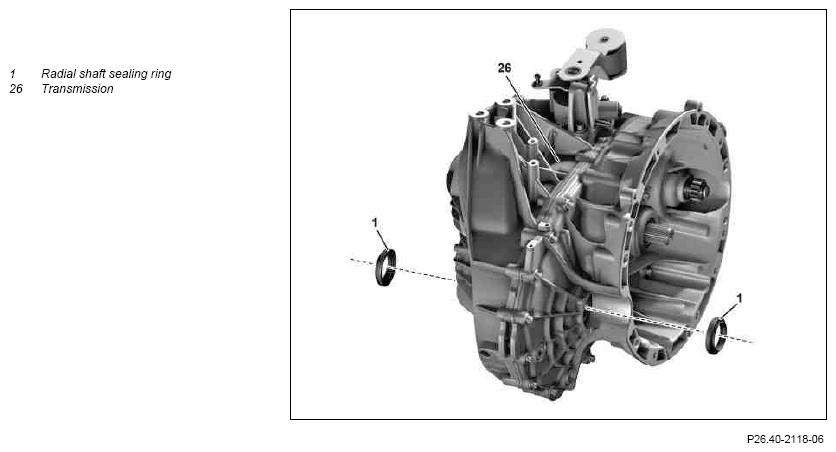

| 5 | Pry radial shaft sealing ring (1) out of transmission (26) using a suitable tool | The leaktightness and perfect seating of the radial shaft sealing ring (1) can otherwise not be guaranteed. |
|
| Fig 2 | |||
| Check | |||
| 6 | Check seat cushion of radial shaft sealing ring (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Check oil level and correct if necessary | AR26.00-P-0200NKB | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run and check transmission (26) for leaktightness and proper operation |
