Drain transmission oil, refill - AR26.00-P-0200NKB

TRANSMISSION 711.6 in MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

2.10.13

Gear oil

TRANSMISSION 711.642/643/645

BF26.10-P-1001-01G

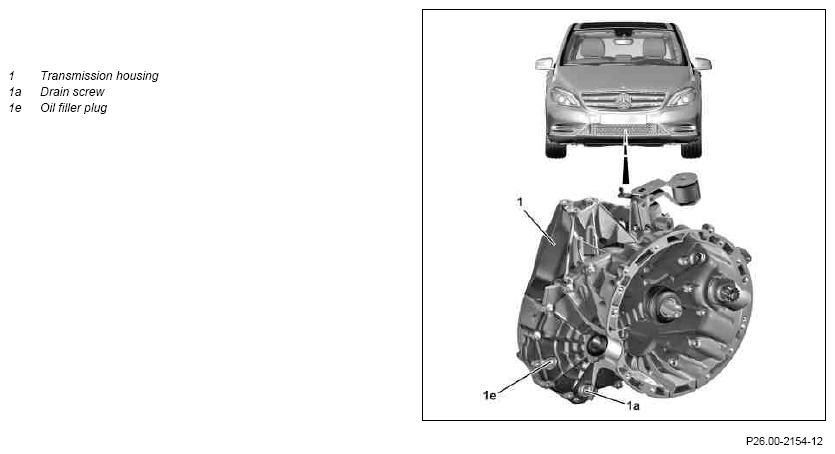

Fig 1: Identifying Transmission Housing, Drain Screw And Oil Filler Plug

Courtesy of MERCEDES-BENZ USA

	Lowering
1	Remove rear lower engine compartment paneling	MODEL 117, 176, 246 with ENGINE 607 with TRANSMISSION 711.6 MODEL 117, 176, 246 with ENGINE 651 with TRANSMISSION 711.6	AR94.30-P-5300NKB
1	Remove rear lower engine compartment paneling	MODEL 117, 176, 242, 246 with ENGINE 270 with TRANSMISSION 711.6 MODEL 156 with TRANSMISSION 711.6	AR61.20-P-1105NKB
2	Thoroughly clean area around oil filler screw (1e) and drain screw (1a)	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove oil filler screw (1e) from transmission housing (1)
4	Remove drain screw (1a) from transmission housing (1)	Only change the transmission oil when the transmission is at operating temperature. Allow discharged transmission oil to drain fully and collect in a suitable container.
	Filling
5	Screw drain screw (1a) into transmission housing (1)	Use a new drain screw (1a).
5	Screw drain screw (1a) into transmission housing (1)	MODEL 117, 156, 176, 242, 246 with TRANSMISSION 711.63 MODEL 117, 156, 176, 246 with TRANSMISSION 711.64	*BA26.40-P-1006-01E
6	Fill with transmission oil	MODEL 117, 156, 176, 242, 246 with TRANSMISSION 711.632 MODEL 117, 176, 246 with TRANSMISSION 711.642/643/645 MODEL 156 with TRANSMISSION 711.631 MODEL 156 with TRANSMISSION 711.647	*BF26.10-P-1001-01G
7	Screw oil filler screw (1e) into transmission housing (1)	Use new oil filler screw (1e).
7	Screw oil filler screw (1e) into transmission housing (1)	MODEL 117, 156, 176, 242, 246 with TRANSMISSION 711.63 MODEL 117, 156, 176, 246 with TRANSMISSION 711.64	*BA26.40-P-1005-01E
	Check
8	Check transmission for leaks
9	Install lower rear engine compartment paneling	MODEL 117, 176, 242, 246 with ENGINE 270 with TRANSMISSION 711.6 MODEL 156 with TRANSMISSION 711.6	AR61.20-P-1105NKB
9	Install lower rear engine compartment paneling	ENGINE 607 in MODEL 117, 176, 246 with TRANSMISSION 711.6 ENGINE 651 in MODEL 117, 176, 246.2 with TRANSMISSION 711.6	AR94.30-P-5300NKB

HOUSING

Number	Designation		TRANSMISSION 711.63	TRANSMISSION 711.64/65
BA26.40-P-1005-01E	Oil filler screw to transmission housing (thread oiled)	Nm	35	35

HOUSING

Number	Designation		TRANSMISSION 711.63	TRANSMISSION 711.64/65
BA26.40-P-1006-01E	Oil drain screw to transmission housing (thread oiled)	Nm	35	35

COMPLETE TRANSMISSION

Number	Designation			TRANSMISSION 711.631/632	TRANSMISSION 711.642/643/645/647
BF26.10-P-1001-01G	Transmission oil	Filling capacity	Liter	2, 2	2, 2
BF26.10-P-1001-01G	Transmission oil	Specification		Gear oils (Specification 235.10). MB 235.10 manual transmission oil A 001 989 84 03	Gear oils (Specification 235.10). MB 235.10 manual transmission oil A 001 989 84 03

REPAIR MATERIALS

Number	Designation	Order note
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG
