Remove/install tank recess - AR88.60-P-2000NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

25.01.2016 Operation step changed AS 6
25.01.2016 Operation step version added Operation step 8 and AS16
25.01.2016 Condition added in operation step AS17
25.01.2016 Operation step changed Operation step 23
26.01.2016 New graphic added P88.60-2563-06

Shown on model 246

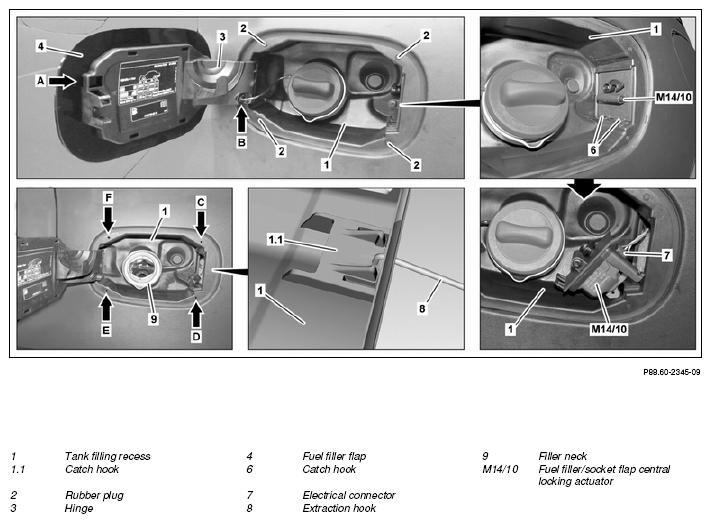

Fig 1: Identifying Tank Recess Remove/Install Components - Shown On Model 246
G10250789Courtesy of MERCEDES-BENZ USA

Shown on model 242 with engine 270

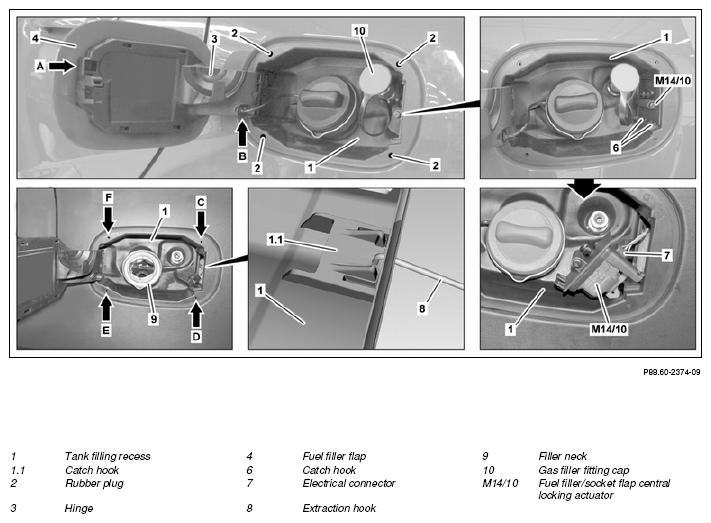

Fig 2: Identifying Tank Recess Remove/Install Components - Shown On Model 242
G10250790Courtesy of MERCEDES-BENZ USA

Shown on MODEL 242 with Motor 780 and with CODE 494 (USA version)

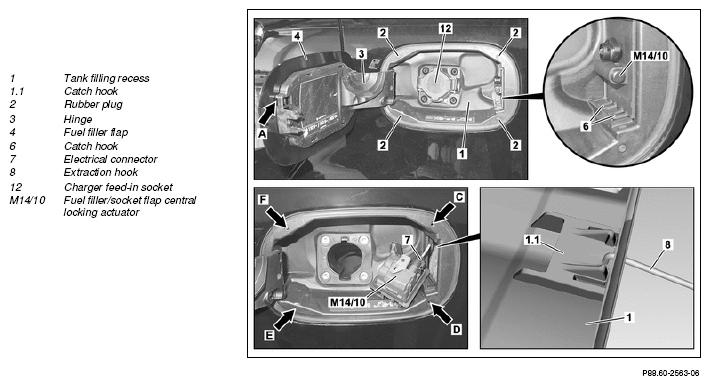

Fig 3: Identifying Tank Recess Remove/Install Components - Model 242 With Code 494
G10250791Courtesy of MERCEDES-BENZ USA

Shown on MODEL 242 with Motor 780 and without CODE 494 (USA version)

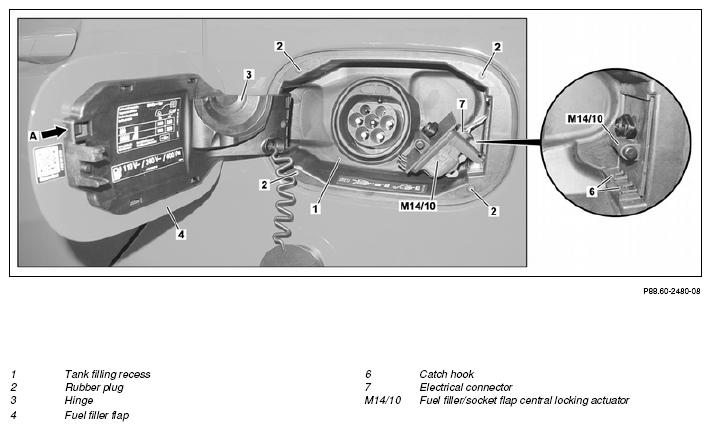

Fig 4: Identifying Tank Recess Remove/Install Components - Model 242 Without Code 494
G10250792Courtesy of MERCEDES-BENZ USA

Shown on MODEL 242 with Motor 780 and with CODE 494 (USA version)

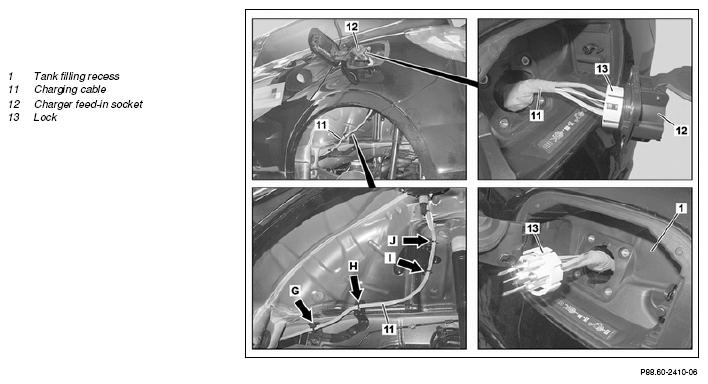

Fig 5: Identifying Tank Recess Remove/Install Components - Shown On Model 242
G10250793DANGERDANGERNOTESNOTESNOTESIMPORTANTREMOVINGREFER TO MAINTENANCEIMPORTANTIMPORTANTSPECIAL TOOLINSTALLINGREFER TO MAINTENANCECourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Note on high-voltage battery   AH54.10-P-0006-01MEV
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVING Remove
1 Perform disable for the high-voltage on-board electrical system Model 242 with engine 780
with code 494 (US version)

AR54.10-P-1150NKE
2 Detach left rear wheel-and-tire assembly Model 242 with engine 780
with code 494 (US version)

REFER TO MAINTENANCE     AP40.10-P-4050AK
3 Remove fender liner in left rear fender Model 242 with engine 780
with code 494 (US version)

AR88.10-P-1400NKB
4 Unclip charging cable (11) (arrow G, H, I, J) Model 242 with engine 780
with code 494 (US version)

5 Detach charger feed socket (12) from tank filler recess (1) Model 242 with engine 780
with code 494 (US version)

  AR54.10-P-5109NKE
IMPORTANT Charger feed socket (12) remains on vehicle.
6 Unclip lock (13) from charger feed power outlet (12) and detach charging cable (11) from charger feed power outlet (12) Model 242 with engine 780
with code 494 (US version)

7 Unlock fuel filler flap (4) from catch hook (arrow A) and remove from hinge (3)
8.1 Remove rubber plug (2) If rubber plug (2) is installed.
8.2 Drill tank filler recess (3) at defined cutout (arrows C, D, E, F) with Ø 3 mm bit If rubber plug (2) is not installed.
9 Unclip tank/socket cap central locking actuator (M14/10) from catch hooks (6)
10 Disconnect electrical connector (7) and remove tank/socket cap central locking actuator (M14/10)
11 Unclip tank cap check strap from bracket (arrow B) and unscrew tank tap Model 117, 156, 176, 246
Model 242 with engine 270
Model 242 with engine 780
except code 494 (US version)

12 Remove gas filler fitting cap (10) together with check strap Model 242 with engine 270
13 Disengage catch hooks (1.1) behind release holes (arrows C, D, E, F) with extraction hook (8) and simultaneously pull tank filler recess (1) out of left rear fender IMPORTANT Insert extraction hook (8) into release holes (arrows C, D, E, F) only far enough to disengage catch hooks (1.1).
SPECIAL TOOL Extraction hook Figure
14 Coat seal on tank filler recess (1) on filler neck (9) with lubricant Model 117, 156, 176, 246
Model 242 with engine 270

Special lubricant *BR00.45-Z-1055-06A
15 Coat seal on tank filler recess (1) on gas filler fitting with lubricant Model 242 with engine 270
Special lubricant *BR00.45-Z-1055-06A
16.1 Put seal of tank filler recess (1) over filler neck (9), gas filler neck and remove tank filler recess (1) from left rear fender. Model 242 with engine 270
16.2 Carefully put tank filler recess (1) over lock (13) and filler neck (9) and remove tank filler recess (1) from left rear fender Model 242 with engine 780
with code 494 (US version)

16.3 Put tank filler recess (1) over filler neck (9) and remove left rear fender. Model 117, 156, 176, 246
INSTALLING Install
17 Install rubber plug (2) in tank filler recess (1) If tank filler recess must not be replaced and the cutouts (arrows C, D, E, F) are not plugged.
18 Coat seal on tank filler recess (1) on filler neck (9) with lubricant Model 117, 156, 176, 246
Model 242 with engine 270

Special lubricant *BR00.45-Z-1055-06A
19 Coat seal on tank filler recess (1) on gas filler fitting with lubricant Model 242 with engine 270
Special lubricant *BR00.45-Z-1055-06A
20 Put seal of tank filler recess (1) over filler neck (9) Model 117, 156, 176, 246
Model 242 with engine 270

21 Put seal of tank filler recess (1) over gas filler fitting Model 242 with engine 270
22 Guide electrical connector (7) through opening for tank/socket cap central locking actuator (M14/10)
23 Insert tank filler recess (1) at front into left rear fender, the pivot toward rear and clip in catch hook (1.1).
24 Screw on tank cap and clip tank cap check strap into bracket (arrow B) Model 117, 156, 176, 246
Model 242 with engine 270
Model 242 with engine 780
except code 494 (US version)

25 Remove gas filler fitting cap (10) together with check strap Model 242 with engine 270
26 Connect tank/socket cap central locking actuator (M14/10) to electrical connector (7) and clip into tank filler recess (1)
27 Clip charger feed socket (12) into lock (13) Model 242 with engine 780
with code 494 (US version)

28 Install charger feed socket (12) Model 242 with engine 780
with code 494 (US version)

AR54.10-P-5109NKE
29 Slide tank cap (4) onto hinge (3) and arrest
30 Clip in charging cable (11) (arrow G, H, I, J) Model 242 with engine 780
with code 494 (US version)

31 Install fender liner in left rear fender Model 242 with engine 780
with code 494 (US version)

AR88.10-P-1400NKB
32 Install complete rear wheel Model 242 with engine 780
with code 494 (US version)

REFER TO MAINTENANCE     AP40.10-P-4050AK
33 Perform initial startup of high-voltage on-board electrical system Model 242 with engine 780
with code 494 (US version)

AR54.10-P-1150NKE
Fig 6: Identifying Extraction Hook (140 589 02 33 00)
G10250794Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1055-06A Special lubricant A 000 989 36 60
