Remove/Install Steering Wheel - Ar46.10-D-0100E
MODEL 906
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-N-0006-01B | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove airbag unit from steering wheel | AR91.60-D-0660C | |
| 2 | Turn the steering wheel into the center position and allow the steering wheel lock to engage | ||

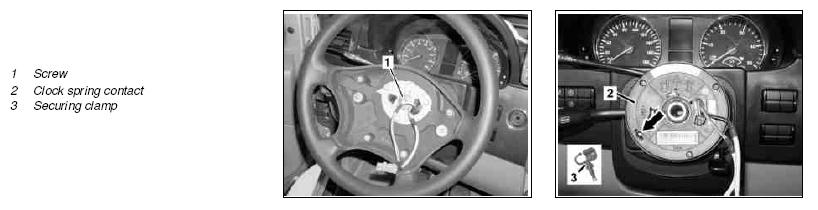

| 3 | Remove screw/bolt (1) | ||
| *BA46.10-N-1008-05C | |||
| 4 | Detach steering wheel from the steering column | ||
| 5 | Secure clock spring contact (2) against twisting with adhesive strip or if present with securing clamp (3) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform road test to check the position of the steering wheel |
STEERING WHEEL, STEERING COLUMN TUBE, STEERING SHAFT
| Number | Designation | MODEL 906 | |
|---|---|---|---|
| BA46.10-N-1008-05C | Bolt, steering wheel to steering shaft | Nm | 80 |
