Remove/Install Airbag Unit On Steering Wheel - Ar91.60-D-0660C
MODEL 906
Vehicle without CODE CL4 (Multifunction steering wheel with trip computer)
Vehicle with CODE CL4 (Multifunction steering wheel with trip computer)
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-N-0006-01B | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01B | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove ignition key from ignition lock | ||
| 2 | Remove screws/bolts (1) on rear of steering wheel and remove airbag unit (4) from steering wheel | *BA91.60-N-1001-01A | |

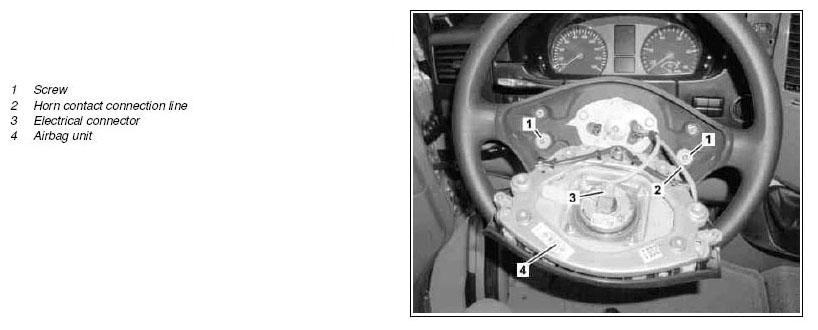

| Fig 1 | |||
| 3.1 | Detach horn contact connection line (2) from airbag unit (4) | Vehicle without CODE CL4 (Multifunction steering wheel with trip computer) | |
| 3.2 | Disconnect electrical connector (5) | Vehicle with CODE CL4 (Multifunction steering wheel with trip computer) | |

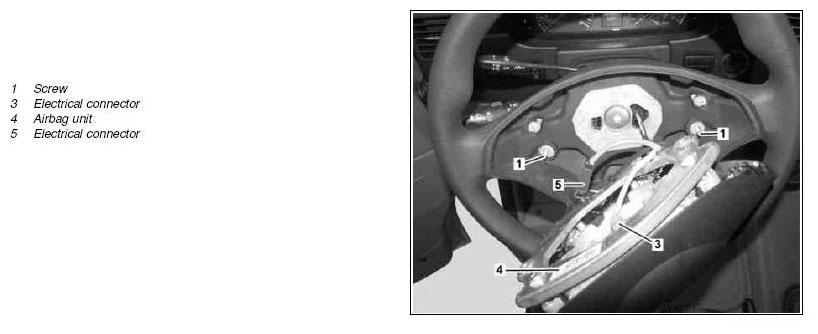

| 4 | Remove electrical connector (3) from airbag unit (4) | Fig 2 | |
| 5 | Remove airbag unit (4) | ||
| 6 | Replace steering wheel | Only if the airbag unit (4) was triggered. | |
| AR46.10-D-0100E | |||
| 7 | Install in the reverse order | ||
| 8 | Connect diagnostic system and perform quick test | ||
| AD00.00-D-2000-04SD | |||
| 9 | Read out fault memory of the Supplemental Restraint System (SRS) and delete fault memory |
AIRBAG
| Number | Designation | MODEL 906 | |
|---|---|---|---|
| BA91.60-N-1001-01A | Bolt, airbag to steering wheel | Nm | 6 |
