Remove/Install Alternator Belt Pulley - Ar15.40-D-5710SD

ENGINES 651.955/956/957 in MODEL 906 except CODE (MJ7) ECO start

Courtesy of MERCEDES-BENZ USA

	Remove/install	-	-

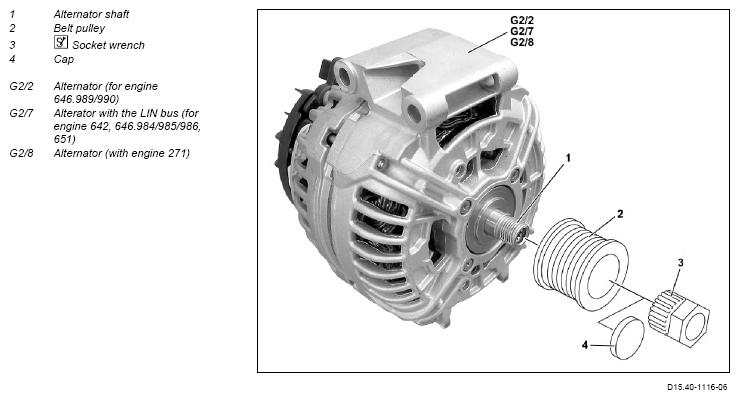

1	Remove alternator (G2/2.G2/8) or alternator with the LIN bus (G2/7)	Engine 651.955/957	AR15.40-D-5032WE
-	-	Engine 651.956	AR15.40-D-5032WE
2	Remove cap (4)	-	-
3	Unscrew belt pulley (2) with socket wrench (3), whilst doing so, counterhold the alternator shaft (1) using the screwdriver bit	Socket wrench	Fig 2
-	-	Screwdriver bit (alternator from the company Bosch) Commercially available hexalobular socket screwdriver bit T50 with a long stem (alternator from the company Valeo)	Fig 1
-	-	Engine 651	*BA15.40-N-1010-01P
4	Install in the reverse order	-	-

Fig 1: Screwdriver Bit (601 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Socket Wrench (602 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
