Remove/Install Pressure Transducer For Boost Pressure Aneroid Capsule - Ar09.40-D-1003WE

ENGINES 651.955/957 in MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install	-	-
1	Remove engine trim panel	-	AR01.10-D-2405WE

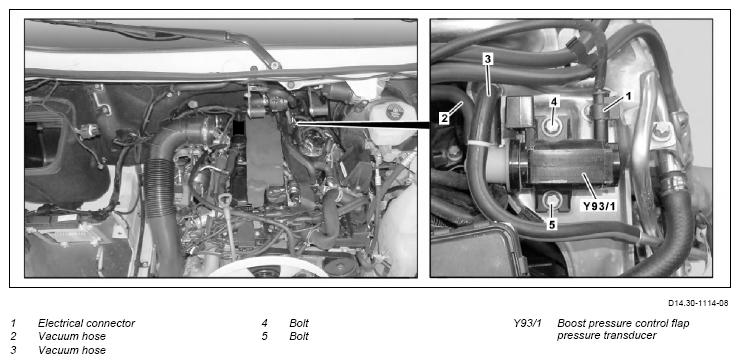

2	Disconnect electrical connector (1) from boost pressure control flap pressure transducer (Y93/1)	-	-
3	Detach vacuum hoses (2, 3)	Note the different diameters of the vacuum hoses (2, 3). Check vacuum hoses (2, 3); replace if necessary.	-
4	Remove bolt (5) by two revolutions	-	-
5	Remove bolt (4) and boost pressure control flap pressure transducer (Y93/1) upwards	-	-
6	Install in the reverse order	-	-
