Remove/Install Oil Return Flow Line Of Turbocharger - Ar09.40-D-6021WE
Engine 651.955/957 in model 906
| - | Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A |
| Remove/install | - | - | |
| 1 | Remove alternator | - | AR15.40-D-5032WE |

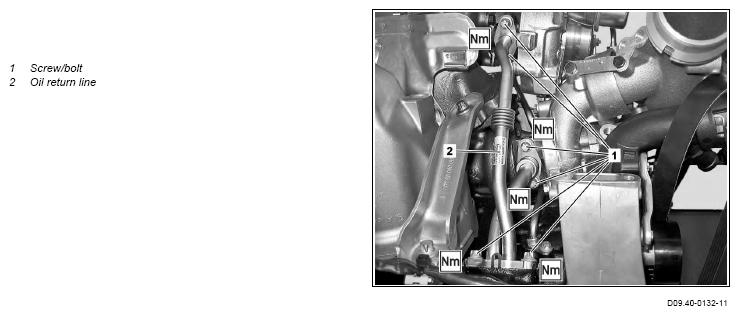

| 2 | Remove oil return line (2) | *BA09.40-N-1014-01R | |
| 3 | Install in the reverse order | - | - |
| - | Check | - | - |
| 4 |
Check engine oil level; correct as required Low SPAsh multigrade service engine oils (specification 228.51) Low SPAsh multigrade service engine oils (specification 229.31) |
The engine oil level must not lie above the maximum marking. Engine damage may occur otherwise. |
BB00.40-P-0228-51A BB00.40-P-0229-31A |
| 5 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Check for leak tightness with engine running |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
TURBOCHARGER
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA09.40-N-1014-01R | Bolt, oil return line to crankcase/turbocharger | Nm | 9 |
