Remove/Install Brake Booster - Ar43.10-D-0350H
MODEL 906
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work | Before starting engine, actuate brake pedal several times until the pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove brake master cylinder | AR42.10-D-0300H | |
| 2 | Disconnect vacuum line (2) from brake booster (1) | ||
| 3 | Remove locking cotter pin (3) | ||
| 4 | Remove brake pedal fastening bolt (4) from master brake cylinder push rod | ||
| Molykote 44 Light silicone grease | *BR00.45-Z-1019-06A | ||
| 5 | Unscrew nuts (5). | *BA43.10-N-1001-01A | |

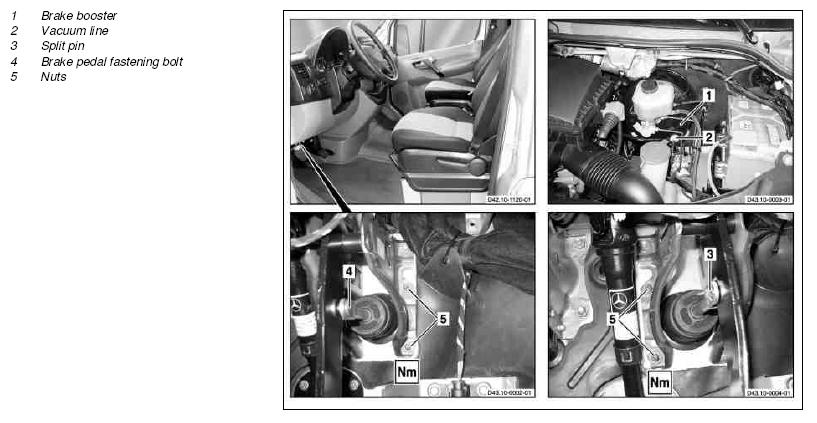

| Fig 1 | |||
| 6 | Remove brake booster (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Bleed brake system | AR42.10-D-0010H | |
| Check | |||
| 9 | Inspect braking system for proper operation and leaks |
PNEUMATIC BRAKE BOOSTER
| Number | Designation | Model 906 | |
|---|---|---|---|
| BA43.10-N-1001-01A | Nut of brake booster to pedal bearing bracket | Nm | 23 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1019-06A | ABS sensor grease | A 000 989 62 51 10 |
