Check LEAKTIGHTNESS And Condition Of All Containers, Devices, Shock Absorbers, Covers, Boots, Protective Caps - AP00.20-D-0052H
MODEL 906
| Check | |||
| 1 | Check all reservoirs for fuel, coolant, compressed air or vacuum, oil, grease and brake fluid for leaks and damage | If components are damaged or leaky: ↓ Subject to separate repair order, seal or replace components. |
|
| 2 | Check pneumatic and hydraulic equipment for leaks | If components are leaky: ↓ Subject to separate repair order, seal or replace components. |
|
| 3 | Check to ensure that all covers and paneling are undamaged and properly secured | If covers and panels are damaged or loose: ↓ Subject to separate repair order, secure or replace components. |
|
| 4 | Check to ensure that boots and dust caps are undamaged and securely seated | If boots and dust caps are damaged or leaky: ↓ Subject to separate repair order, replace damaged components. |
|

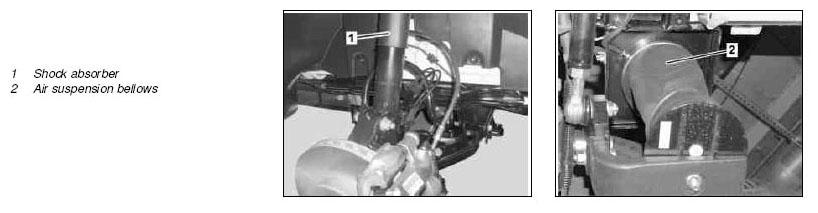

| 5 | Check that air suspension bellows (2) are not leaking and are in good condition | With CODE PL9 (Air suspension, VB-Airsuspension company) If air suspension bellows are damaged (e.g. cracks, cuts, chafe marks, etc.): ↓ Subject to separate repair order, replace damaged air suspension bellows (3). |
